R40C1/8
R40C1/8
R40C1/8

R40C1/8

UGC PRE5999409
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.21 CAD - $2.21 CAD
$2.21 CAD
$2.21 CAD - $2.21 CAD
$2.21 CAD

Vendu en lots de : 12

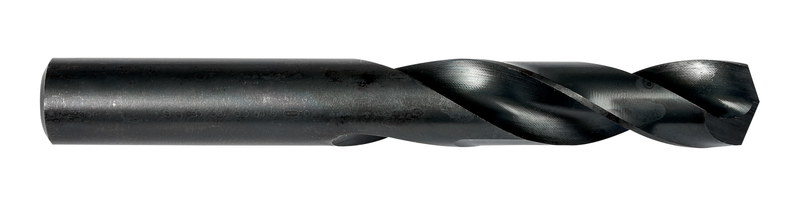

Foret court à queue droite, diamètre 0,1250" (1/8) avec une longueur totale de 1,7/8" et une longueur de goujure de 7/8" selon la norme NAS907 Type C avec une pointe à centrer robuste de 135°, en HSS avec finition trempée à la vapeur pour un perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C1/8
GradeTrempé à la vapeur
Product Number5999409
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.875"
Overall Length — mm (OAL)47.63 mm
Flute Length — in (LCF)0.875"
Flute Length — mm (LCF)22.23 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40808
File Type Download
R40C1/8 — 3D Model STP Download
R40C1/8 — Line Drawing PDF Download
