R40C11/32
R40C11/32
R40C11/32

R40C11/32

UGC PRE5999412
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.51 CAD - $7.51 CAD
$7.51 CAD
$7.51 CAD - $7.51 CAD
$7.51 CAD

Vendu en lots de : 6

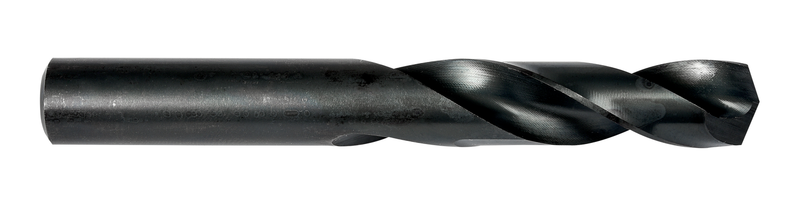

Foret court à queue cylindrique, diamètre 0,3438" (11/32) avec une longueur totale de 3" et une longueur de coupe de 1,11/16" selon la norme NAS907 Type C avec une pointe auto-centrante renforcée à 135°, en HSS avec finition trempée à la vapeur pour un perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C11/32
GradeTrempé à la vapeur
Product Number5999412
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.3438"
Cutting Diameter — mm (DC)8.73 mm
Cutting Diameter — Fractional11/32
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Flute Length — in (LCF)1.6875"
Flute Length — mm (LCF)42.86 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3438"
Connection Dia. — mm (DCON)8.73 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40822
File Type Download
R40C11/32 — 3D Model STP Download
R40C11/32 — Line Drawing PDF Download
