R40C13/32
R40C13/32
R40C13/32

R40C13/32

UGC PRE5999418
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.54 CAD - $10.54 CAD
$10.54 CAD
$10.54 CAD - $10.54 CAD
$10.54 CAD

Vendu en lots de : 6

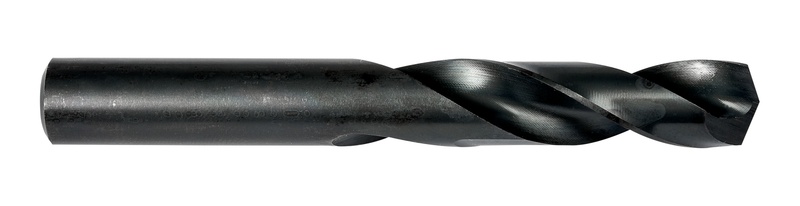

Foret court à queue cylindrique, diamètre 0,4063" (13/32) avec une longueur totale de 3,5/16" et une longueur de coupe de 1,15/16" selon la norme NAS907 Type C avec pointe fendue robuste de 135°, en acier rapide avec finition trempée à la vapeur pour un perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C13/32
GradeTrempé à la vapeur
Product Number5999418
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.4063"
Cutting Diameter — mm (DC)10.32 mm
Cutting Diameter — Fractional13/32
Overall Length — in (OAL)3.3125"
Overall Length — mm (OAL)84.14 mm
Flute Length — in (LCF)1.9375"
Flute Length — mm (LCF)49.21 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4063"
Connection Dia. — mm (DCON)10.32 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40826
File Type Download
R40C13/32 — 3D Model STP Download
R40C13/32 — Line Drawing PDF Download
