R40C15/32
R40C15/32
R40C15/32

R40C15/32

UGC PRE5999423
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.06 CAD - $15.06 CAD
$15.06 CAD
$15.06 CAD - $15.06 CAD
$15.06 CAD

Vendu en lots de : 6

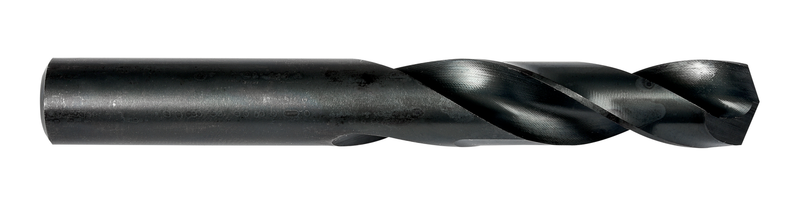

Foret court à queue cylindrique, diamètre 0,4688" (15/32) avec une longueur totale de 3.5/8" et une longueur de goujure de 2.1/8" selon la norme NAS907 Type C avec pointe fendue à 135° pour usage intensif, HSS avec finition trempée à la vapeur pour un perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C15/32
GradeTrempé à la vapeur
Product Number5999423
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.4688"
Cutting Diameter — mm (DC)11.91 mm
Cutting Diameter — Fractional15/32
Overall Length — in (OAL)3.625"
Overall Length — mm (OAL)92.08 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4688"
Connection Dia. — mm (DCON)11.91 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40830
File Type Download
R40C15/32 — 3D Model STP Download
R40C15/32 — Line Drawing PDF Download
