R40C15/64
R40C15/64
R40C15/64

R40C15/64

UGC PRE5999425
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.74 CAD - $3.74 CAD
$3.74 CAD
$3.74 CAD - $3.74 CAD
$3.74 CAD

Vendu en lots de : 12

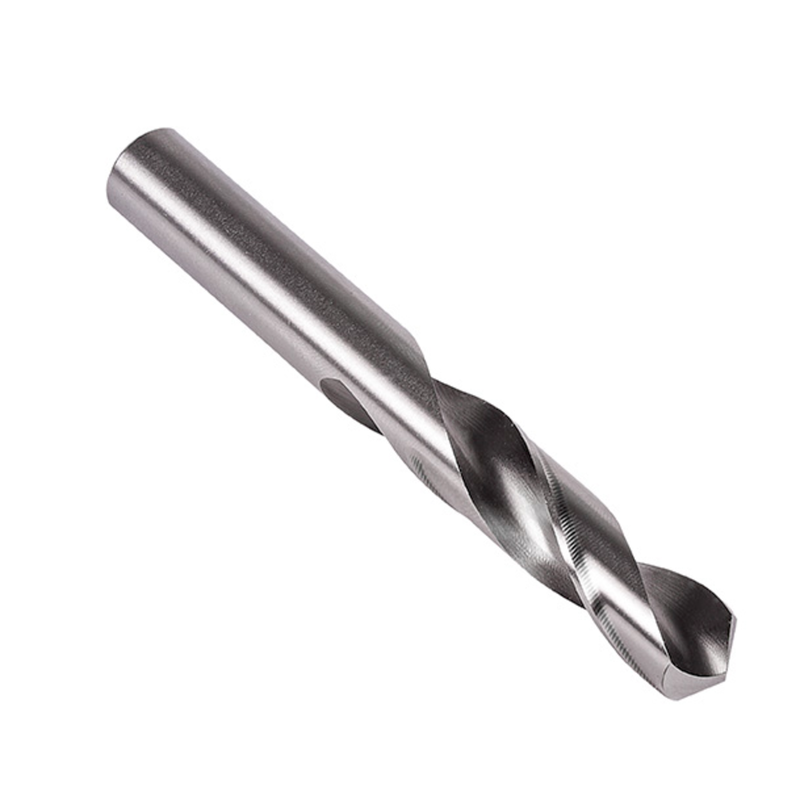

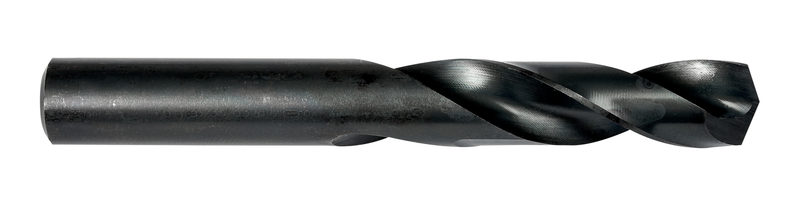

Foret court à queue cylindrique, diamètre 0,2344" (15/64) avec une longueur totale de 2,7/16" et une longueur de coupe de 1,5/16" selon la norme NAS907 Type C avec une pointe à 135° à éclats renforcée, en HSS avec finition trempée à la vapeur pour le perçage de 2,5xD sans dégagement dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C15/64
GradeTrempé à la vapeur
Product Number5999425
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.2344"
Cutting Diameter — mm (DC)5.95 mm
Cutting Diameter — Fractional15/64
Overall Length — in (OAL)2.4375"
Overall Length — mm (OAL)61.91 mm
Flute Length — in (LCF)1.3125"
Flute Length — mm (LCF)33.34 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2344"
Connection Dia. — mm (DCON)5.95 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40815
File Type Download
R40C15/64 — 3D Model STP Download
R40C15/64 — Line Drawing PDF Download
