R40C17/64
R40C17/64
R40C17/64

R40C17/64

UGC PRE5999427
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.77 CAD - $4.77 CAD
$4.77 CAD
$4.77 CAD - $4.77 CAD
$4.77 CAD

Vendu en lots de : 12

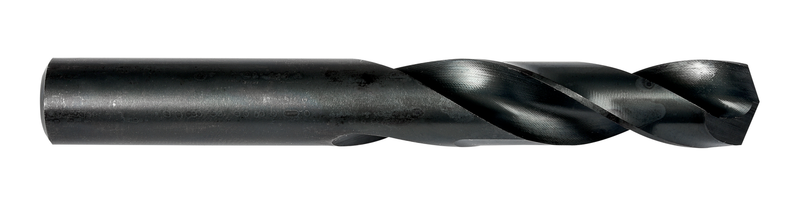

Foret court à queue cylindrique, diamètre 0,2656" (17/64) d'une longueur totale de 2.5/8" et d'une longueur de coupe de 1.7/16" selon la norme NAS907 Type C avec pointe fendue robuste à 135°, HSS avec finition trempée à la vapeur pour un perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C17/64
GradeTrempé à la vapeur
Product Number5999427
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.2656"
Cutting Diameter — mm (DC)6.75 mm
Cutting Diameter — Fractional17/64
Overall Length — in (OAL)2.625"
Overall Length — mm (OAL)66.68 mm
Flute Length — in (LCF)1.4375"
Flute Length — mm (LCF)36.51 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2656"
Connection Dia. — mm (DCON)6.75 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40817
File Type Download
R40C17/64 — 3D Model STP Download
R40C17/64 — Line Drawing PDF Download
