R40C21/64
R40C21/64
R40C21/64

R40C21/64

UGC PRE5999433
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.64 CAD - $6.64 CAD
$6.64 CAD
$6.64 CAD - $6.64 CAD
$6.64 CAD

Vendu en lots de : 6

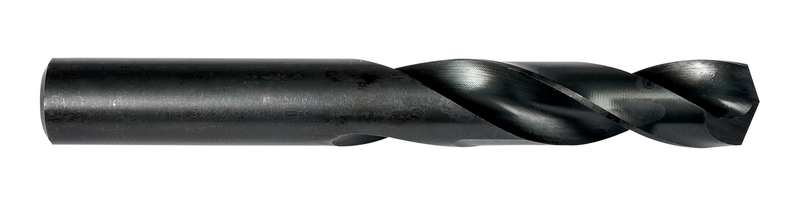

Foret étagé à queue droite, diamètre 0,3281" (21/64) avec une longueur totale de 2,15/16" et une longueur de goujure de 1,11/16" selon la norme NAS907 Type C avec pointe fendue robuste à 135°, en HSS avec finition trempée à la vapeur pour un perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C21/64
GradeTrempé à la vapeur
Product Number5999433
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.3281"
Cutting Diameter — mm (DC)8.33 mm
Cutting Diameter — Fractional21/64
Overall Length — in (OAL)2.9375"
Overall Length — mm (OAL)74.61 mm
Flute Length — in (LCF)1.6875"
Flute Length — mm (LCF)42.86 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3281"
Connection Dia. — mm (DCON)8.33 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40821
File Type Download
R40C21/64 — 3D Model STP Download
R40C21/64 — Line Drawing PDF Download
