R40C23/64
R40C23/64
R40C23/64

R40C23/64

UGC PRE5999435
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.64 CAD - $8.64 CAD
$8.64 CAD
$8.64 CAD - $8.64 CAD
$8.64 CAD

Vendu en lots de : 6

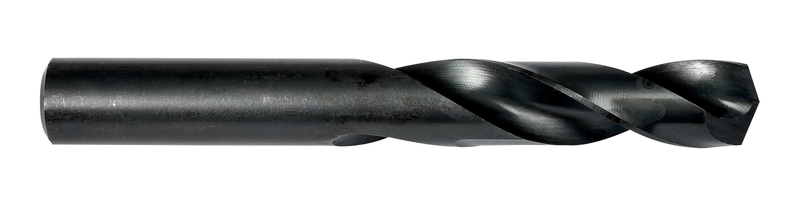

Foret étagé à queue droite, diamètre 0,3594" (23/64) avec une longueur totale de 3.1/16" et une longueur de coupe de 1.3/4" selon la norme NAS907 Type C avec pointe fendue robuste à 135°, HSS avec finition trempée à la vapeur pour un perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C23/64
GradeTrempé à la vapeur
Product Number5999435
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.3594"
Cutting Diameter — mm (DC)9.13 mm
Cutting Diameter — Fractional23/64
Overall Length — in (OAL)3.0625"
Overall Length — mm (OAL)77.79 mm
Flute Length — in (LCF)1.75"
Flute Length — mm (LCF)44.45 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3594"
Connection Dia. — mm (DCON)9.13 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40823
File Type Download
R40C23/64 — 3D Model STP Download
R40C23/64 — Line Drawing PDF Download
