R40C27/64
R40C27/64
R40C27/64

R40C27/64

UGC PRE5999438
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.74 CAD - $11.74 CAD
$11.74 CAD
$11.74 CAD - $11.74 CAD
$11.74 CAD

Vendu en lots de : 6

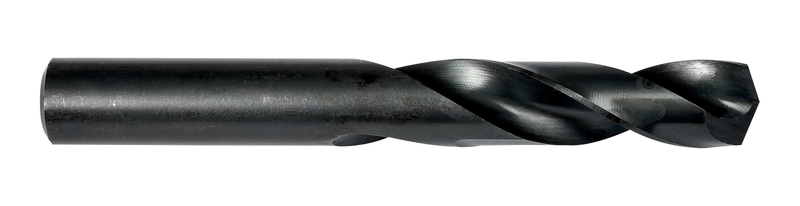

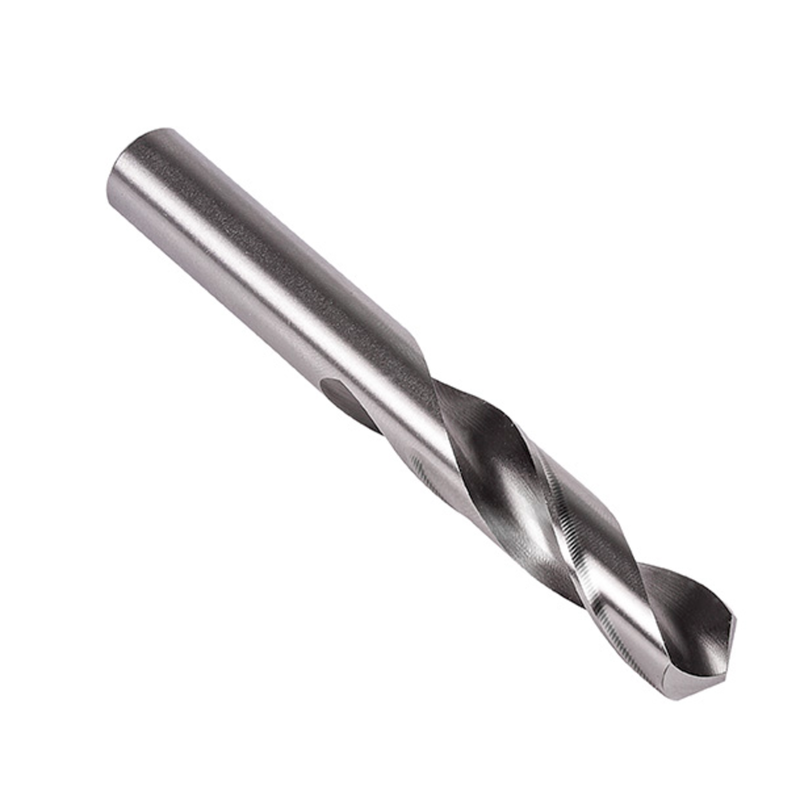

Foret court à queue droite, diamètre 0,4219" (27/64) d'une longueur totale de 3,3/8" et d'une longueur de coupe de 2" selon la norme NAS907 Type C avec pointe auto-centrante robuste à 135°, en HSS avec finition trempée à la vapeur pour un perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C27/64
GradeTrempé à la vapeur
Product Number5999438
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.4219"
Cutting Diameter — mm (DC)10.72 mm
Cutting Diameter — Fractional27/64
Overall Length — in (OAL)3.375"
Overall Length — mm (OAL)85.73 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4219"
Connection Dia. — mm (DCON)10.72 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40827
File Type Download
R40C27/64 — 3D Model STP Download
R40C27/64 — Line Drawing PDF Download
