R40C29/64
R40C29/64
R40C29/64

R40C29/64

UGC PRE5999439
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.10 CAD - $14.10 CAD
$14.10 CAD
$14.10 CAD - $14.10 CAD
$14.10 CAD

Vendu en lots de : 6

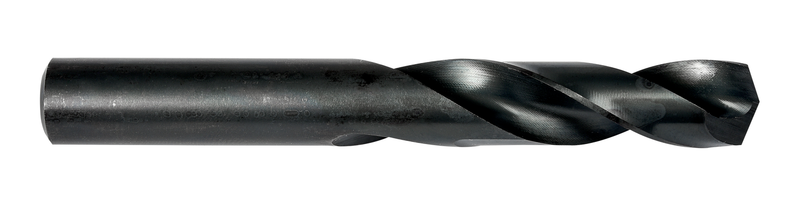

Foret court à queue cylindrique, diamètre 0,4531" (29/64) avec une longueur totale de 3.9/16" et une longueur de coupe de 2.1/8" selon la norme NAS907 Type C avec une pointe à 135° à auto-centrage renforcée, en HSS avec finition trempée à la vapeur pour un perçage jusqu'à 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C29/64
GradeTrempé à la vapeur
Product Number5999439
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.4531"
Cutting Diameter — mm (DC)11.51 mm
Cutting Diameter — Fractional29/64
Overall Length — in (OAL)3.5625"
Overall Length — mm (OAL)90.49 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4531"
Connection Dia. — mm (DCON)11.51 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40829
File Type Download
R40C29/64 — 3D Model STP Download
R40C29/64 — Line Drawing PDF Download
