R40C31/64
R40C31/64
R40C31/64

R40C31/64

UGC PRE5999443
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.43 CAD - $15.43 CAD
$15.43 CAD
$15.43 CAD - $15.43 CAD
$15.43 CAD

Vendu en lots de : 6

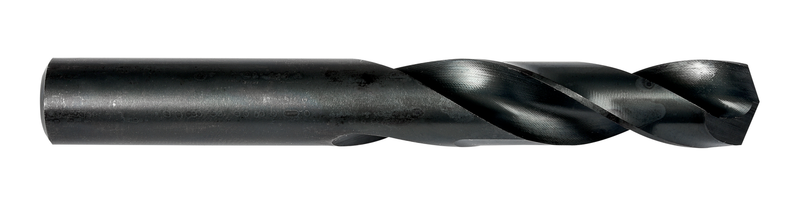

Foret court à queue cylindrique, diamètre 0,4844" (31/64) avec une longueur totale de 3,11/16" et une longueur de coupe de 2,3/16" selon la norme NAS907 Type C avec pointe fendue robuste à 135°, en acier rapide avec finition trempée à la vapeur pour un perçage de 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C31/64
GradeTrempé à la vapeur
Product Number5999443
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.4844"
Cutting Diameter — mm (DC)12.3 mm
Cutting Diameter — Fractional31/64
Overall Length — in (OAL)3.6875"
Overall Length — mm (OAL)93.66 mm
Flute Length — in (LCF)2.1875"
Flute Length — mm (LCF)55.56 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4844"
Connection Dia. — mm (DCON)12.3 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40831
File Type Download
R40C31/64 — 3D Model STP Download
R40C31/64 — Line Drawing PDF Download
