R40C7/16
R40C7/16
R40C7/16

R40C7/16

UGC PRE5999448
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 6

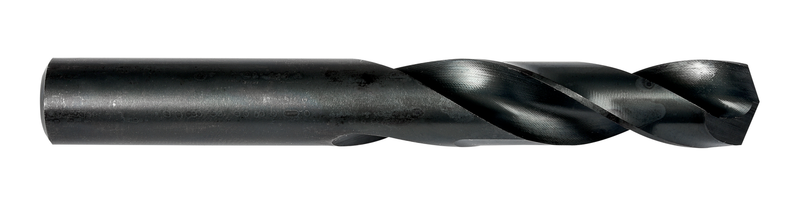

Foret court à queue cylindrique, diamètre de 0,4375" (7/16) avec une longueur totale de 3,7/16" et une longueur de coupe de 2,1/16" conforme à la norme NAS907 Type C, avec pointe auto-centrante renforcée de 135°, en acier rapide avec finition traitée vapeur pour perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C7/16
GradeTrempé à la vapeur
Product Number5999448
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)3.4375"
Overall Length — mm (OAL)87.31 mm
Flute Length — in (LCF)2.0625"
Flute Length — mm (LCF)52.39 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40828
File Type Download
R40C7/16 — 3D Model STP Download
R40C7/16 — Line Drawing PDF Download
