R40C9/64
R40C9/64
R40C9/64

R40C9/64

UGC PRE5999452
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.36 CAD - $2.36 CAD
$2.36 CAD
$2.36 CAD - $2.36 CAD
$2.36 CAD

Vendu en lots de : 12

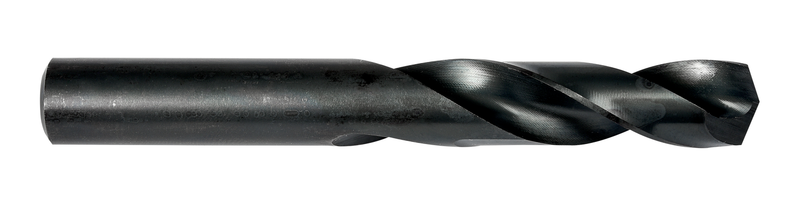

Foret court à queue cylindrique, diamètre 0,1406" (9/64) avec une longueur totale de 1,15/16" et une longueur de coupe de 15/16" selon la norme NAS907 Type C avec pointe auto-centrante renforcée de 135°, en acier rapide HSS avec finition trempée vapeur pour perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C9/64
GradeTrempé à la vapeur
Product Number5999452
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.1406"
Cutting Diameter — mm (DC)3.57 mm
Cutting Diameter — Fractional9/64
Overall Length — in (OAL)1.9375"
Overall Length — mm (OAL)49.21 mm
Flute Length — in (LCF)0.9375"
Flute Length — mm (LCF)23.81 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1406"
Connection Dia. — mm (DCON)3.57 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40809
File Type Download
R40C9/64 — 3D Model STP Download
R40C9/64 — Line Drawing PDF Download
