R571.9/32
R571.9/32

R571.9/32

UGC PRE5999616
par Precision Twist Drill
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$167.01 CAD - $167.01 CAD
$167.01 CAD
$167.01 CAD - $167.01 CAD
$167.01 CAD

Vendu en lots de : 1

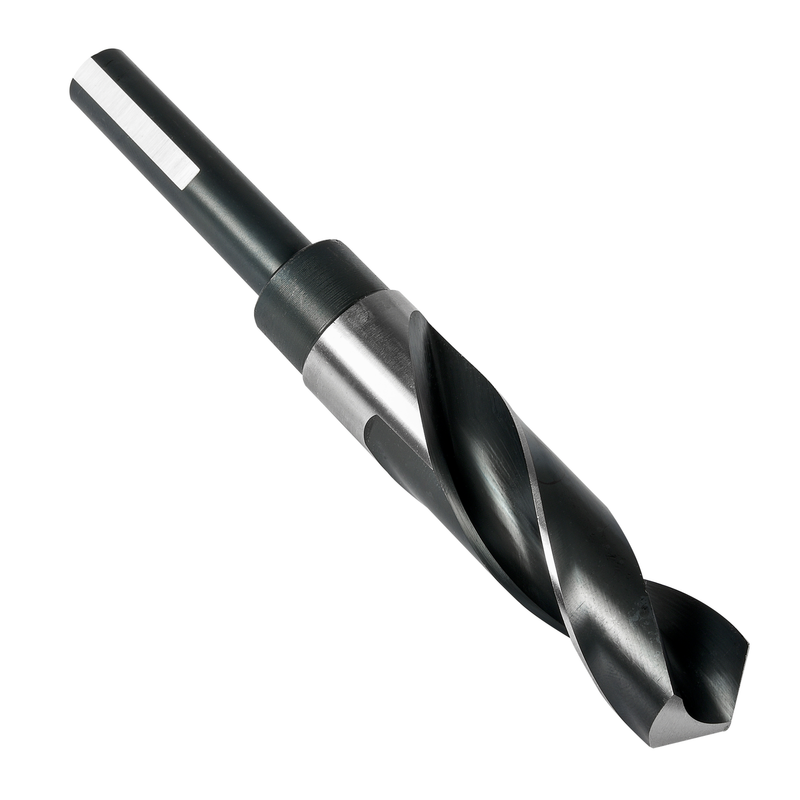

Foret jobber à queue réduite tri-plate de 1/2", diamètre 1,2813" (1.9/32) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante + trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)R571.9/32
Product Name (ISO)R571,9/32
GradeLumineux/ST
Product Number5999616
Product FamilyR57
Dimensions
Cutting Diameter — in (DC)1.2813"
Cutting Diameter — mm (DC)32.55 mm
Cutting Diameter — Fractional1,9/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91589
File Type Download
R571.9/32 — 3D Model STP Download
R571.9/32 — Line Drawing PDF Download
