R52N13
R52N13
R52N13

R52N13

UGC PRE5999693
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.01 CAD - $13.01 CAD
$13.01 CAD
$13.01 CAD - $13.01 CAD
$13.01 CAD

Vendu en lots de : 12

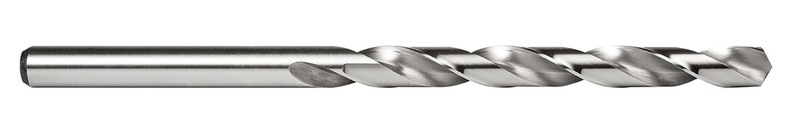

Forets série longue à queue cylindrique, diamètre 0,1850" (N13) avec une longueur totale de 5,3/4" et une longueur de coupe de 3,3/8" selon la norme ANSI, angle de pointe de 118°, HSS avec finition brillante pour perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R52N13
GradeLumineux
Product Number5999693
Product FamilyR52
Dimensions
Cutting Diameter — in (DC)0.185"
Cutting Diameter — mm (DC)4.7 mm
Overall Length — in (OAL)5.75"
Overall Length — mm (OAL)146.05 mm
Flute Length — in (LCF)3.375"
Flute Length — mm (LCF)85.73 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.185"
Connection Dia. — mm (DCON)4.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number52013
File Type Download
R52N13 — 3D Model STP Download
R52N13 — Line Drawing PDF Download
