R5115/16
R5115/16
R5115/16

R5115/16

UGC PRE5999700
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$110.61 CAD - $110.61 CAD
$110.61 CAD
$110.61 CAD - $110.61 CAD
$110.61 CAD

Vendu en lots de : 1

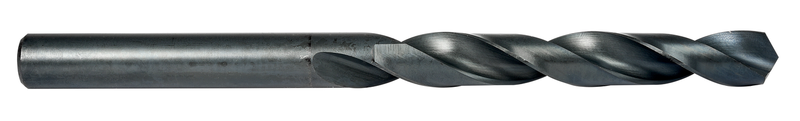

Foret série longue avec queue cylindrique, diamètre 0,9375" (15/16) avec une longueur totale de 10,3/4" et une longueur de coupe de 6,1/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée vapeur pour perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5115/16
GradeTrempé à la vapeur
Product Number5999700
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)0.9375"
Cutting Diameter — mm (DC)23.81 mm
Cutting Diameter — Fractional15/16
Overall Length — in (OAL)10.75"
Overall Length — mm (OAL)273.05 mm
Flute Length — in (LCF)6.125"
Flute Length — mm (LCF)155.58 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.9375"
Connection Dia. — mm (DCON)23.81 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51060
File Type Download
R5115/16 — 3D Model STP Download
R5115/16 — Line Drawing PDF Download
