R5115/32
R5115/32
R5115/32

R5115/32

UGC PRE5999702
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.77 CAD - $25.77 CAD
$25.77 CAD
$25.77 CAD - $25.77 CAD
$25.77 CAD

Vendu en lots de : 6

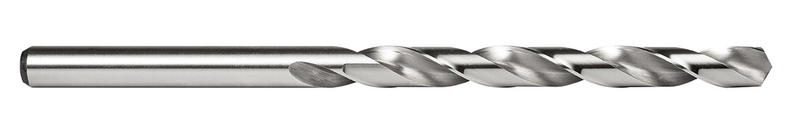

Foret série longue avec queue cylindrique, diamètre 0,4688" (15/32) avec une longueur totale de 7,1/2" et une longueur de coupe de 4,3/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5115/32
GradeLumineux
Product Number5999702
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)0.4688"
Cutting Diameter — mm (DC)11.91 mm
Cutting Diameter — Fractional15/32
Overall Length — in (OAL)7.5"
Overall Length — mm (OAL)190.5 mm
Flute Length — in (LCF)4.75"
Flute Length — mm (LCF)120.65 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.4688"
Connection Dia. — mm (DCON)11.91 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51030
File Type Download
R5115/32 — 3D Model STP Download
R5115/32 — Line Drawing PDF Download
