R88CO27/64
R88CO27/64

R88CO27/64

UGC PRE5999727
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.47 CAD - $29.47 CAD
$29.47 CAD
$29.47 CAD - $29.47 CAD
$29.47 CAD

Vendu en lots de : 6

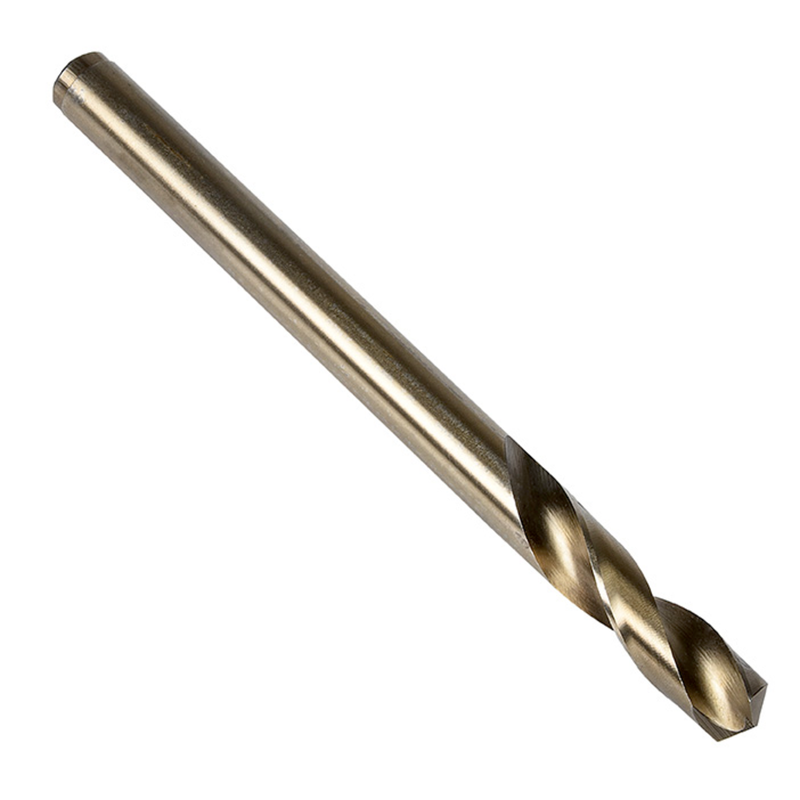

Forets courts à queue cylindrique, diamètre 0,4219" (27/64) avec une longueur totale de 5.3/8" et une longueur de coupe de 2" selon la norme NAS907 Type D, avec une pointe auto-centrante robuste à 135°, en cobalt HSS-E avec finition bronze pour le perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R88CO27/64
GradeBronze
Product Number5999727
Product FamilyR88CO
Dimensions
Cutting Diameter — in (DC)0.4219"
Cutting Diameter — mm (DC)10.72 mm
Cutting Diameter — Fractional27/64
Overall Length — in (OAL)5.375"
Overall Length — mm (OAL)136.53 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.4219"
Connection Dia. — mm (DCON)10.72 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58727
File Type Download
R88CO27/64 — 3D Model STP Download

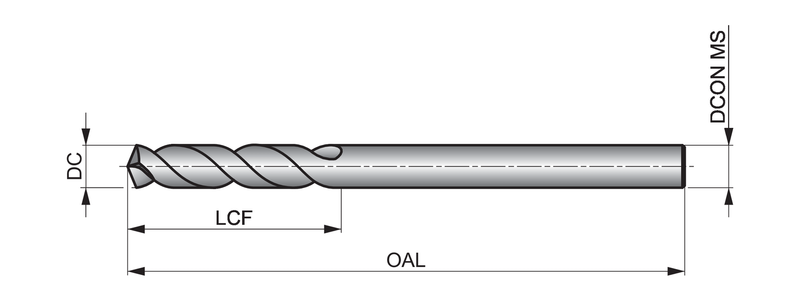

R88CO27/64 — Line Drawing PDF Download
