R88CO29/64
R88CO29/64

R88CO29/64

UGC PRE5999731
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.14 CAD - $34.14 CAD
$34.14 CAD
$34.14 CAD - $34.14 CAD
$34.14 CAD

Vendu en lots de : 6

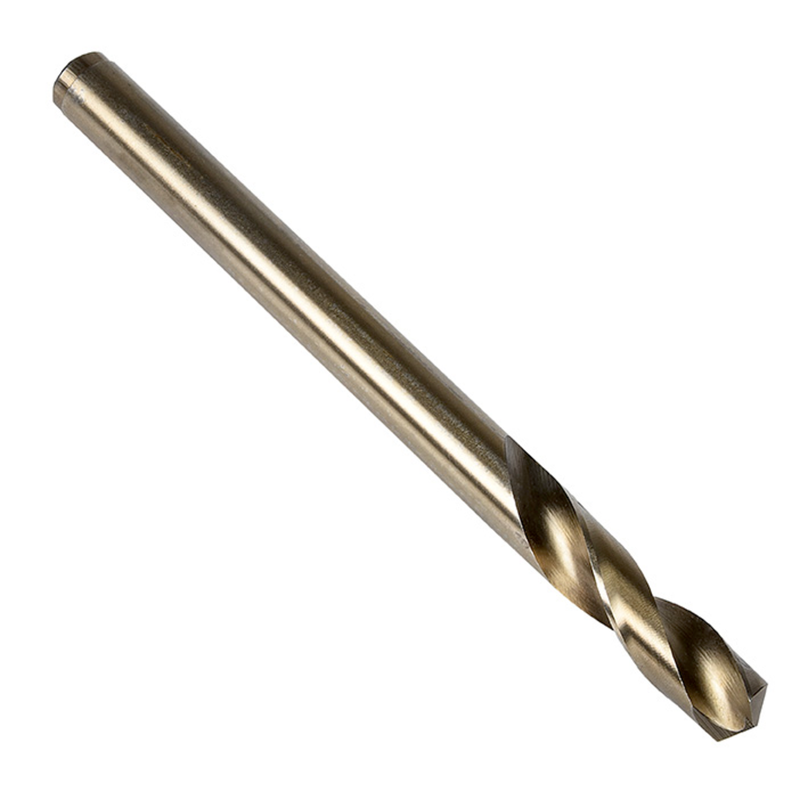

Foret série courte à queue cylindrique, diamètre 0,4531" (29/64) avec une longueur totale de 5.5/8" et une longueur utile de 2.1/8" selon la norme NAS907 Type D avec une pointe auto-centrante renforcée de 135°, HSS-E cobalt avec finition bronze pour le perçage en 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R88CO29/64
GradeBronze
Product Number5999731
Product FamilyR88CO
Dimensions
Cutting Diameter — in (DC)0.4531"
Cutting Diameter — mm (DC)11.51 mm
Cutting Diameter — Fractional29/64
Overall Length — in (OAL)5.625"
Overall Length — mm (OAL)142.88 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.4531"
Connection Dia. — mm (DCON)11.51 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58729
File Type Download
R88CO29/64 — 3D Model STP Download

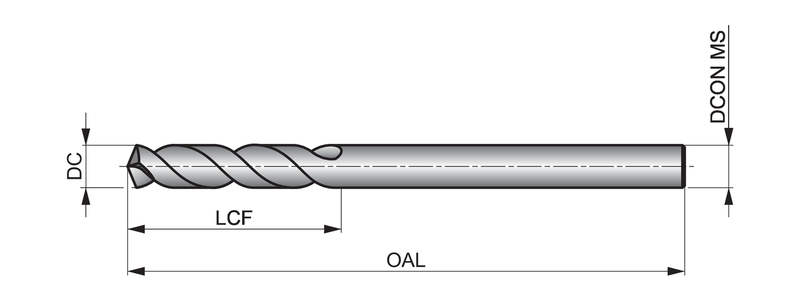

R88CO29/64 — Line Drawing PDF Download
