R5125/32
R5125/32
R5125/32

R5125/32

UGC PRE5999736
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.03 CAD - $82.03 CAD
$82.03 CAD
$82.03 CAD - $82.03 CAD
$82.03 CAD

Vendu en lots de : 1

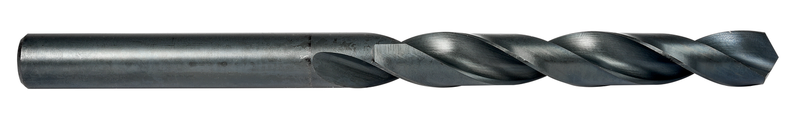

Foret série longue à queue cylindrique, diamètre 0,7813" (25/32) avec une longueur totale de 9,7/8" et une longueur utile de 6" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée vapeur pour un perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5125/32
GradeTrempé à la vapeur
Product Number5999736
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)0.7813"
Cutting Diameter — mm (DC)19.85 mm
Cutting Diameter — Fractional25/32
Overall Length — in (OAL)9.875"
Overall Length — mm (OAL)250.83 mm
Flute Length — in (LCF)6.0"
Flute Length — mm (LCF)152.4 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.7813"
Connection Dia. — mm (DCON)19.85 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51050
File Type Download
R5125/32 — 3D Model STP Download
R5125/32 — Line Drawing PDF Download
