R52N24
R52N24
R52N24

R52N24

UGC PRE5999737
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.01 CAD - $13.01 CAD
$13.01 CAD
$13.01 CAD - $13.01 CAD
$13.01 CAD

Vendu en lots de : 12

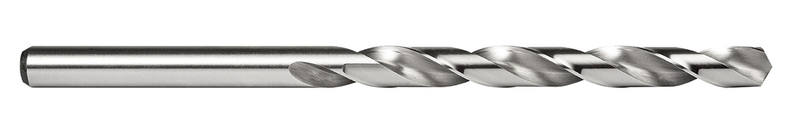

Foret série longue, à queue cylindrique, diamètre 0,1520" (N24), longueur totale 5.3/8" et longueur de coupe 3" selon la norme ANSI, angle de pointe 118°, en acier rapide (HSS) avec finition brillante pour le perçage 6xD sans débourrage dans l'acier, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R52N24
GradeLumineux
Product Number5999737
Product FamilyR52
Dimensions
Cutting Diameter — in (DC)0.152"
Cutting Diameter — mm (DC)3.86 mm
Overall Length — in (OAL)5.375"
Overall Length — mm (OAL)136.53 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.152"
Connection Dia. — mm (DCON)3.86 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number52024
File Type Download
R52N24 — 3D Model STP Download
R52N24 — Line Drawing PDF Download
