R5127/32
R5127/32
R5127/32

R5127/32

UGC PRE5999742
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$94.04 CAD - $94.04 CAD
$94.04 CAD
$94.04 CAD - $94.04 CAD
$94.04 CAD

Vendu en lots de : 1

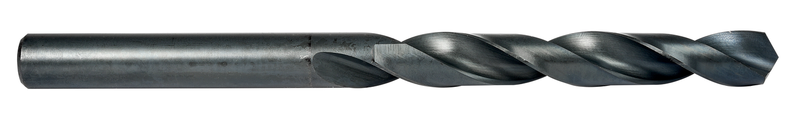

Foret série longue avec queue cylindrique, diamètre 0,8438" (27/32) avec une longueur totale de 10" et une longueur de coupe de 6.1/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5127/32
GradeTrempé à la vapeur
Product Number5999742
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)0.8438"
Cutting Diameter — mm (DC)21.43 mm
Cutting Diameter — Fractional27/32
Overall Length — in (OAL)10.0"
Overall Length — mm (OAL)254.0 mm
Flute Length — in (LCF)6.125"
Flute Length — mm (LCF)155.58 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.8438"
Connection Dia. — mm (DCON)21.43 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51054
File Type Download
R5127/32 — 3D Model STP Download
R5127/32 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
