S20913/16
S20913/16

S20913/16

UGC PRE5999772
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.73 CAD - $106.73 CAD
$106.73 CAD
$106.73 CAD - $106.73 CAD
$106.73 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S20913/16
GradeTrempé à la vapeur
Product Number5999772
Product FamilyS209

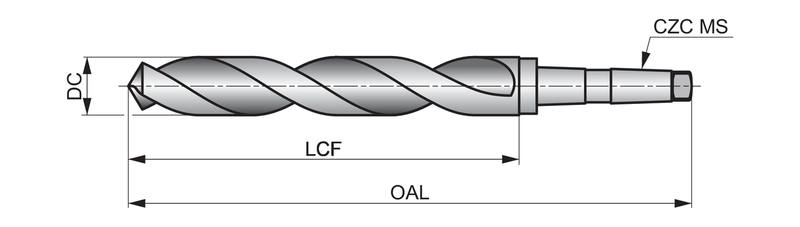

Dimensions
Cutting Diameter — in (DC)0.8125"
Cutting Diameter — mm (DC)20.64 mm
Cutting Diameter — Fractional13/16
Overall Length — in (OAL)10.0"
Overall Length — mm (OAL)254.0 mm
Flute Length — in (LCF)6.125"
Flute Length — mm (LCF)155.58 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number23052
File Type Download
S20913/16 — 3D Model STP Download
S20913/16 — Line Drawing PDF Download
