129037/64

129037/64

UGC PRE5999804
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.83 CAD - $78.83 CAD
$78.83 CAD
$78.83 CAD - $78.83 CAD
$78.83 CAD

Vendu en lots de : 1

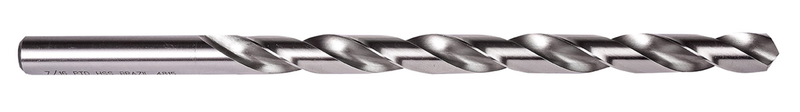

Foret extra-long à queue cylindrique, diamètre 0,5781" (37/64) avec une longueur totale de 12" et une longueur utile de 9" selon la norme ANSI avec angle de pointe 118°, HSS avec finition brillante pour perçage 12xD avec débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)129037/64
GradeLumineux
Product Number5999804
Dimensions
Cutting Diameter — in (DC)0.5781"
Cutting Diameter — mm (DC)14.68 mm
Cutting Diameter — Fractional37/64
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)9.0"
Flute Length — mm (LCF)228.6 mm
Connection Dia. — in (DCON)0.5781"
Connection Dia. — mm (DCON)14.68 mm
Tool Information
StandardANSI
Reference Numbers
EDP Number59637
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
129037/64 — 3D Model STP Download
129037/64 — Line Drawing PDF Download
