UGC PRE5999814
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$100.97 CAD - $100.97 CAD
$100.97 CAD
$100.97 CAD - $100.97 CAD
$100.97 CAD

Vendu en lots de : 1

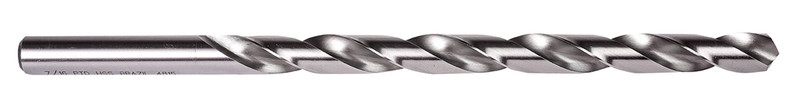

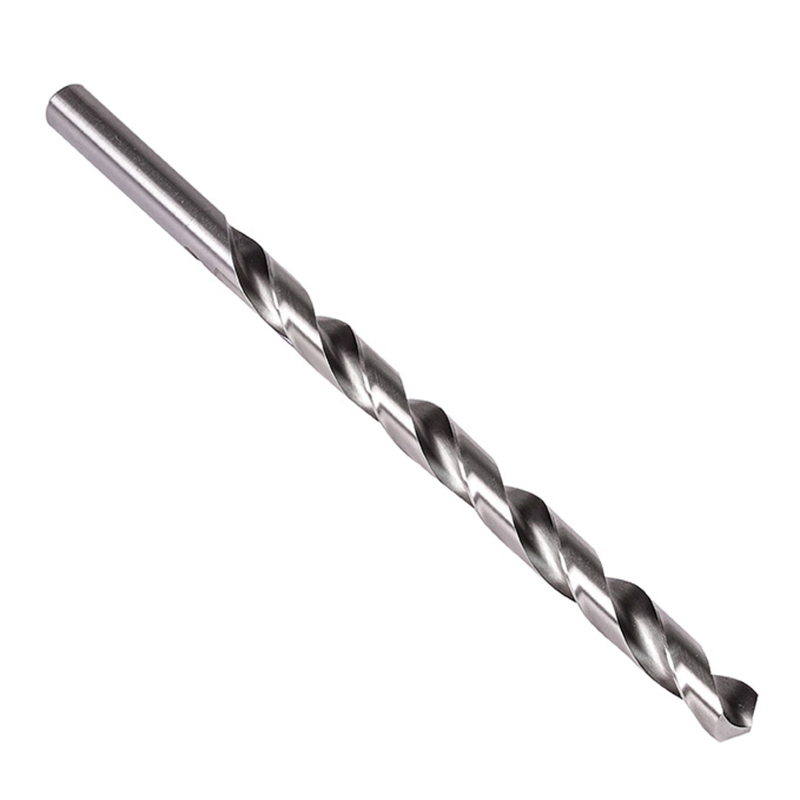

Foret extra-long à queue cylindrique, diamètre 0,5000" (1/2) avec une longueur totale de 15" et une longueur de coupe de 11" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 15xD avec débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)15111 et demie
Product Name (ISO)15111/2
GradeLumineux
Product Number5999814
Product Family1511
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)15.0"
Overall Length — mm (OAL)381.0 mm
Flute Length — in (LCF)11.0"
Flute Length — mm (LCF)279.4 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59532
File Type Download
15111/2 — 3D Model STP Download
15111/2 — Line Drawing PDF Download
