R89CON39
R89CON39

R89CON39

UGC PRE5999826
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.53 CAD - $3.53 CAD
$3.53 CAD
$3.53 CAD - $3.53 CAD
$3.53 CAD

Vendu en lots de : 12

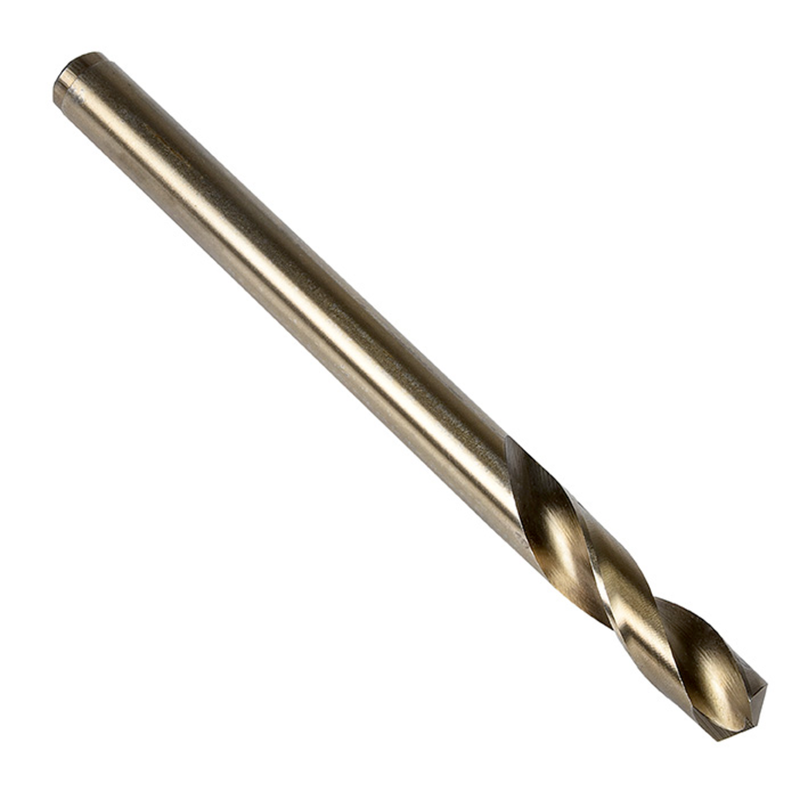

Foret court avec queue droite, diamètre 0,0995" (N39), longueur totale de 2.3/8" et longueur de coupe de 13/16" selon la norme NAS907 Type D, avec pointe fendue robuste à 135°, en HSS-E à base de cobalt avec finition bronze pour un perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R89CON39
GradeBronze
Product Number5999826
Product FamilyR89CO

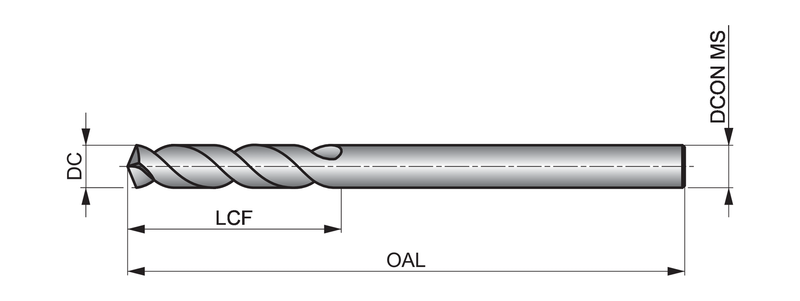

Dimensions
Cutting Diameter — in (DC)0.0995"
Cutting Diameter — mm (DC)2.53 mm
Overall Length — in (OAL)2.375"
Overall Length — mm (OAL)60.33 mm
Flute Length — in (LCF)0.8125"
Flute Length — mm (LCF)20.64 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.0995"
Connection Dia. — mm (DCON)2.53 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58839
File Type Download
R89CON39 — 3D Model STP Download
R89CON39 — Line Drawing PDF Download
