UGC PRE5999827
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.59 CAD - $208.59 CAD
$208.59 CAD
$208.59 CAD - $208.59 CAD
$208.59 CAD

Vendu en lots de : 1

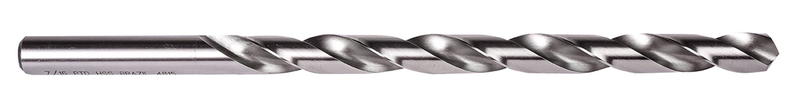

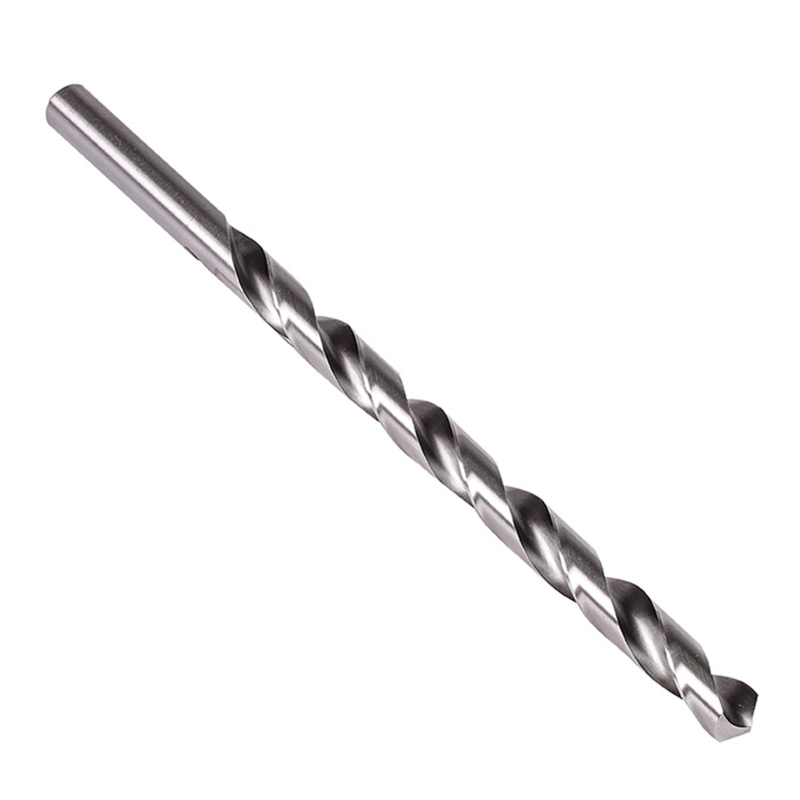

Foret de très grande longueur avec queue cylindrique, diamètre 0,8125" (13/16) avec une longueur totale de 15" et une longueur de goujure de 11" selon la norme ANSI avec un angle de pointe de 118°, en acier rapide avec finition recuite à la vapeur pour un perçage 15xD avec débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)151113/16
GradeLumineux
Product Number5999827
Product Family1511
Dimensions
Cutting Diameter — in (DC)0.8125"
Cutting Diameter — mm (DC)20.64 mm
Cutting Diameter — Fractional13/16
Overall Length — in (OAL)15.0"
Overall Length — mm (OAL)381.0 mm
Flute Length — in (LCF)11.0"
Flute Length — mm (LCF)279.4 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.8125"
Connection Dia. — mm (DCON)20.64 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59552
File Type Download
151113/16 — 3D Model STP Download
151113/16 — Line Drawing PDF Download
