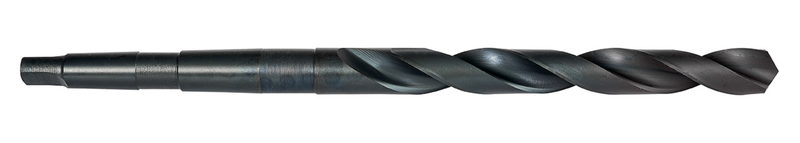

S2091.5/8
S2091.5/8

S2091.5/8

UGC PRE5999828
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$472.53 CAD - $472.53 CAD
$472.53 CAD
$472.53 CAD - $472.53 CAD
$472.53 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2091.5/8
GradeTrempé à la vapeur
Product Number5999828
Product FamilyS209

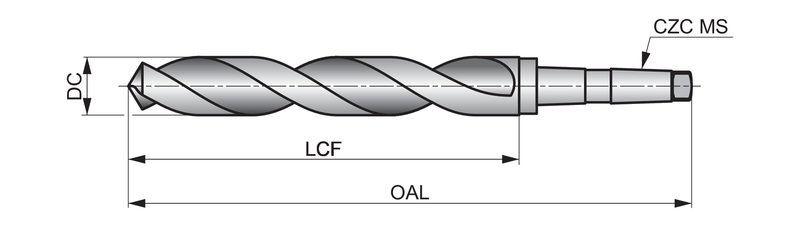

Dimensions
Cutting Diameter — in (DC)1.625"
Cutting Diameter — mm (DC)41.28 mm
Cutting Diameter — Fractional1,5/8
Overall Length — in (OAL)15.625"
Overall Length — mm (OAL)396.88 mm
Flute Length — in (LCF)10.0"
Flute Length — mm (LCF)254.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number23140
File Type Download
S2091.5/8 — 3D Model STP Download
S2091.5/8 — Line Drawing PDF Download
