R89CON45
R89CON45

R89CON45

UGC PRE5999846
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.69 CAD - $3.69 CAD
$3.69 CAD
$3.69 CAD - $3.69 CAD
$3.69 CAD

Vendu en lots de : 12

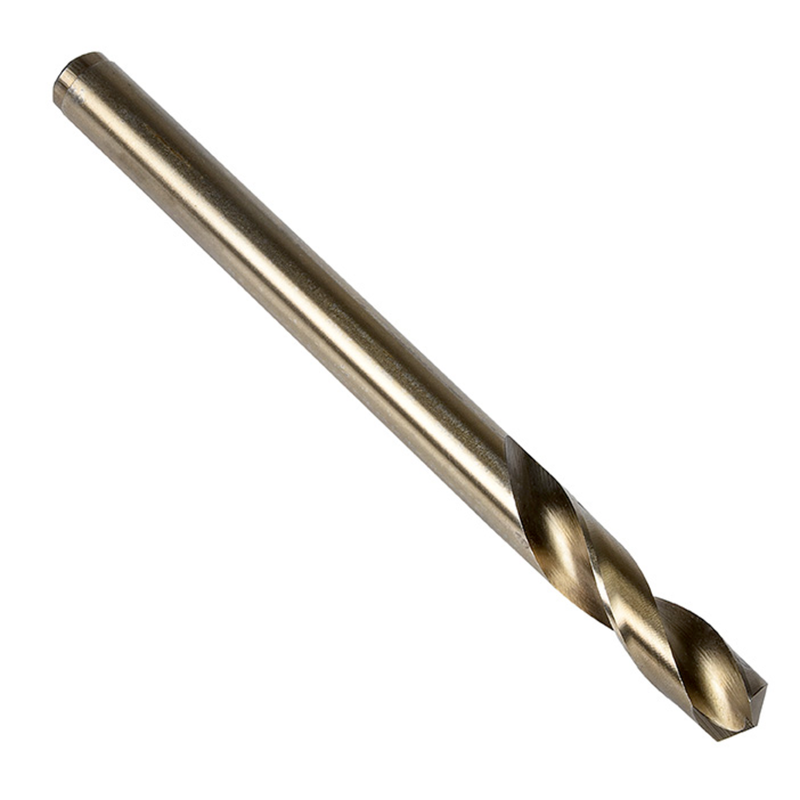

Foret hélice normale, queue cylindrique, diamètre 0,0820" (N45) avec une longueur totale de 2.1/8" et une longueur de coupe de 9/16" selon la norme NAS907 Type D avec une pointe auto-centrante 135° renforcée, HSS-E cobalt avec une finition bronze pour le perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R89CON45
GradeBronze
Product Number5999846
Product FamilyR89CO

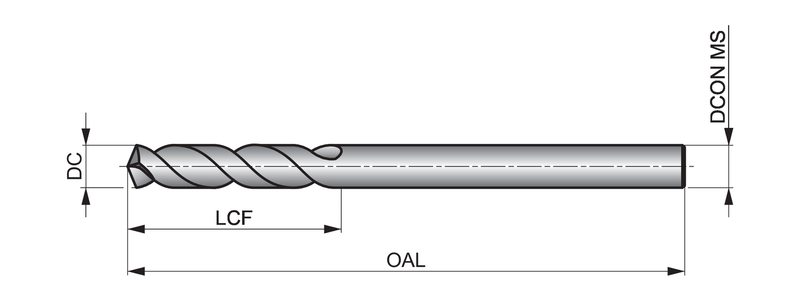

Dimensions
Cutting Diameter — in (DC)0.082"
Cutting Diameter — mm (DC)2.08 mm
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Flute Length — in (LCF)0.5625"
Flute Length — mm (LCF)14.29 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.082"
Connection Dia. — mm (DCON)2.08 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58845
File Type Download
R89CON45 — 3D Model STP Download
R89CON45 — Line Drawing PDF Download
