R89CON46
R89CON46

R89CON46

UGC PRE5999850
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.69 CAD - $3.69 CAD
$3.69 CAD
$3.69 CAD - $3.69 CAD
$3.69 CAD

Vendu en lots de : 12

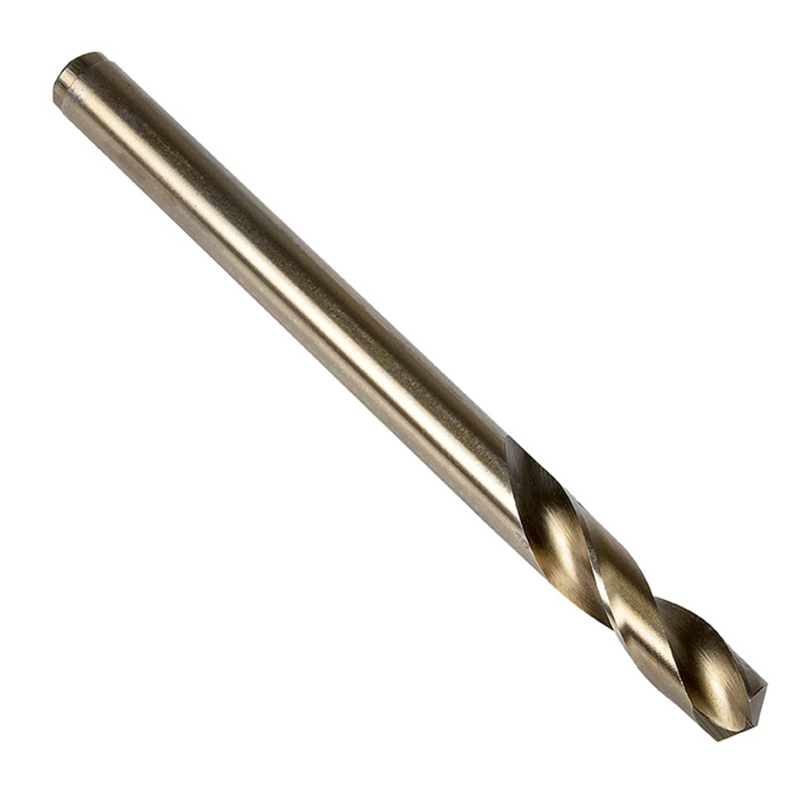

Foret de longueur jobber à queue droite, diamètre 0,0810" (N46) avec une longueur totale de 2.1/8" et une longueur de goujure de 9/16" selon la norme NAS907 Type D avec pointe fendue robuste à 135°, HSS-E à base de cobalt avec finition bronze pour le perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le superalliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R89CON46
GradeBronze
Product Number5999850
Product FamilyR89CO

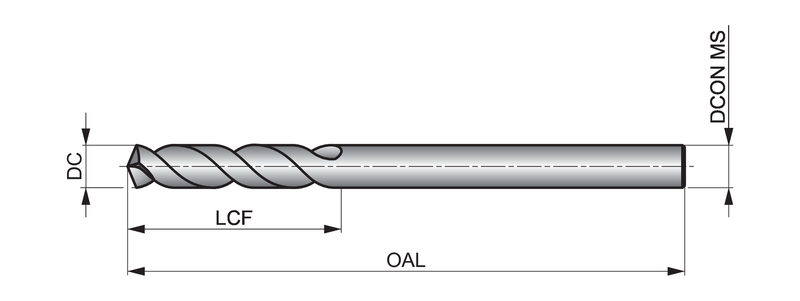

Dimensions
Cutting Diameter — in (DC)0.081"
Cutting Diameter — mm (DC)2.06 mm
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Flute Length — in (LCF)0.5625"
Flute Length — mm (LCF)14.29 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.081"
Connection Dia. — mm (DCON)2.06 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58846
File Type Download
R89CON46 — 3D Model STP Download
R89CON46 — Line Drawing PDF Download
