R561.1/4
R561.1/4
R561.1/4

R561.1/4

UGC PRE5999852
par Precision Twist Drill
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$128.06 CAD - $128.06 CAD
$128.06 CAD
$128.06 CAD - $128.06 CAD
$128.06 CAD

Vendu en lots de : 1

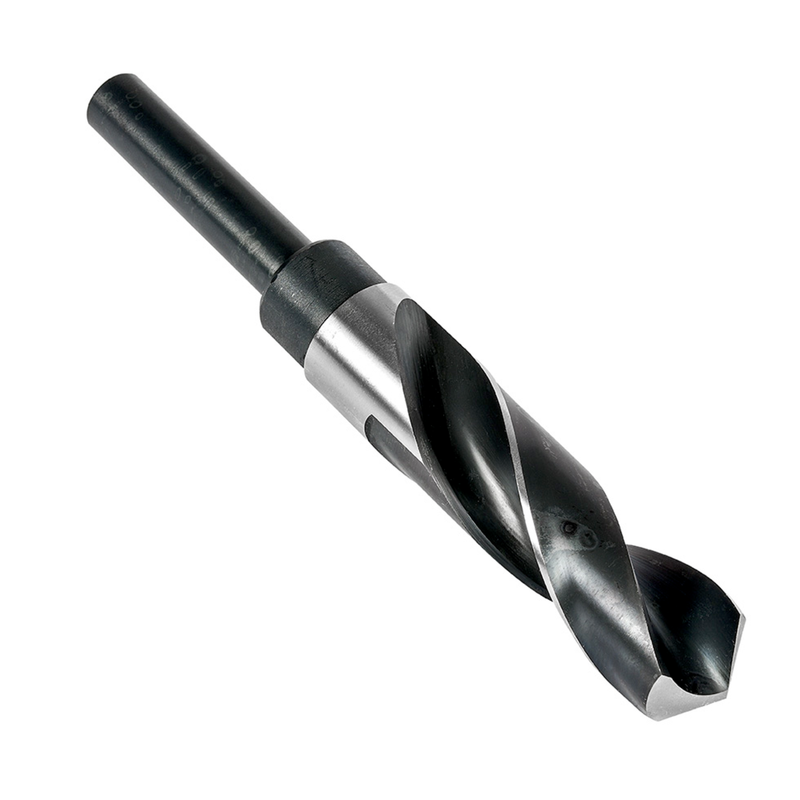

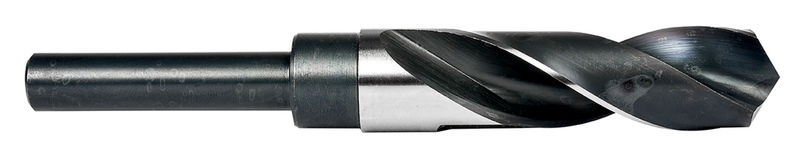

Foret normal avec queue cylindrique réduite à 1/2", diamètre de 1,2500" (1,1/4) avec une longueur totale de 6" et une longueur de coupe de 3" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante + revenu vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)R561.1/4
Product Name (ISO)R561,1/4
GradeLumineux/ST
Product Number5999852
Product FamilyR56
Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.75 mm
Cutting Diameter — Fractional1,1/4
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91480
File Type Download
R561.1/4 — 3D Model STP Download
R561.1/4 — Line Drawing PDF Download
