UGC PRE5999881
par Precision Twist Drill
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$233.74 CAD - $233.74 CAD
$233.74 CAD
$233.74 CAD - $233.74 CAD
$233.74 CAD

Vendu en lots de : 1

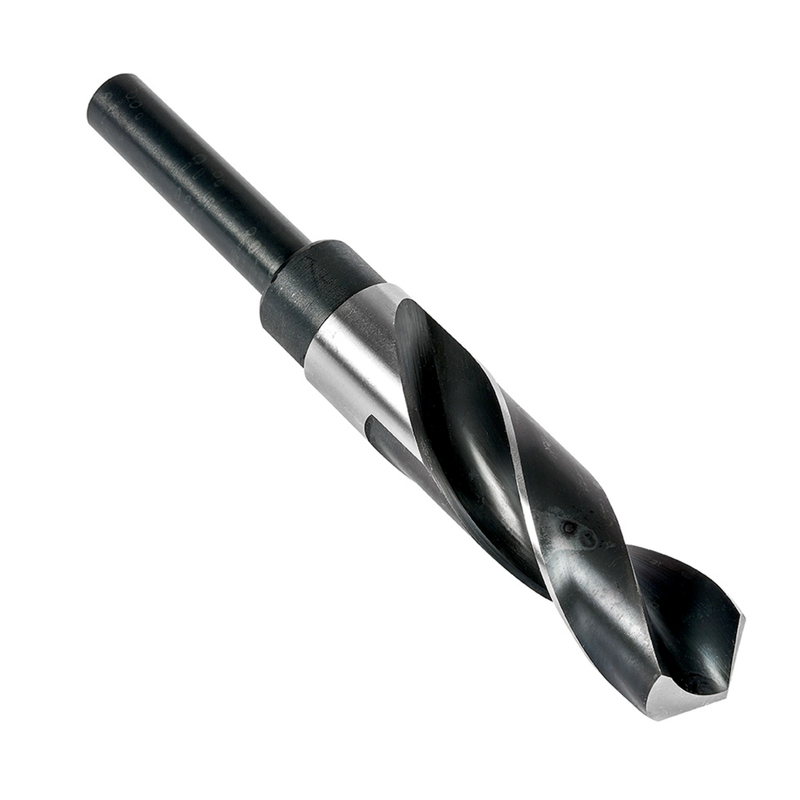

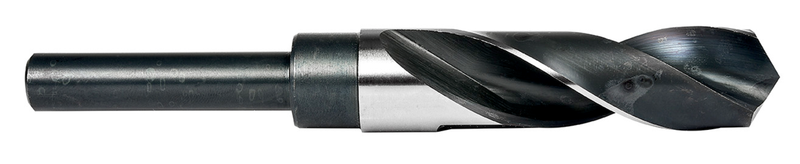

Foret série courte avec queue cylindrique réduite 1/2", diamètre 1,4688" (1.15/32), longueur totale 6" et longueur de coupe 3" selon la norme ANSI, angle de pointe 118°, en HSS avec finition brillante + revenu vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R561.15/32
GradeLumineux/ST
Product Number5999881
Product FamilyR56
Dimensions
Cutting Diameter — in (DC)1.4688"
Cutting Diameter — mm (DC)37.31 mm
Cutting Diameter — Fractional1,15/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91495
File Type Download
R561,15/32 — 3D Model STP Download
R561,15/32 — Line Drawing PDF Download
