R56CO57/64
R56CO57/64

R56CO57/64

UGC PRE5999886
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$107.23 CAD - $107.23 CAD
$107.23 CAD
$107.23 CAD - $107.23 CAD
$107.23 CAD

Vendu en lots de : 1

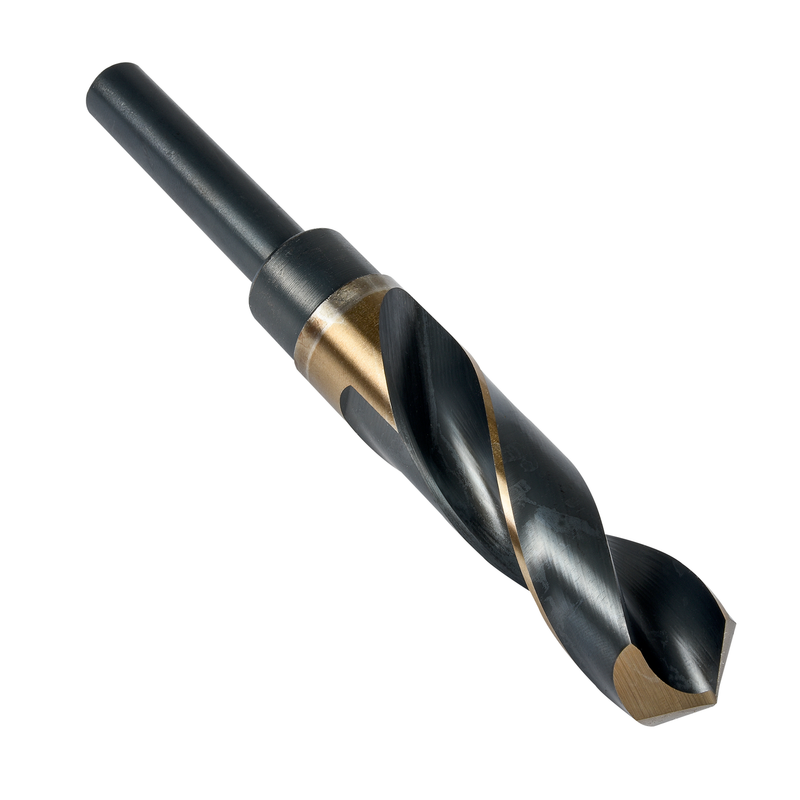

Foret jobber à queue cylindrique réduite 1/2", diamètre 0,8906" (57/64) avec une longueur totale de 6" et une longueur de coupe de 3" selon la norme ANSI avec pointe 118° affûtage en croix, HSS-E à base de cobalt avec finition bronzée + revenu vapeur pour le perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R56CO57/64
GradeTB/Bronze
Product Number5999886
Product FamilyR56CO
Dimensions
Cutting Diameter — in (DC)0.8906"
Cutting Diameter — mm (DC)22.62 mm
Cutting Diameter — Fractional57/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number92357
File Type Download
R56CO57/64 — 3D Model STP Download
R56CO57/64 — Line Drawing PDF Download
