R561.9/64
R561.9/64
R561.9/64

R561.9/64

UGC PRE5999941
par Precision Twist Drill
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$113.40 CAD - $113.40 CAD
$113.40 CAD
$113.40 CAD - $113.40 CAD
$113.40 CAD

Vendu en lots de : 1

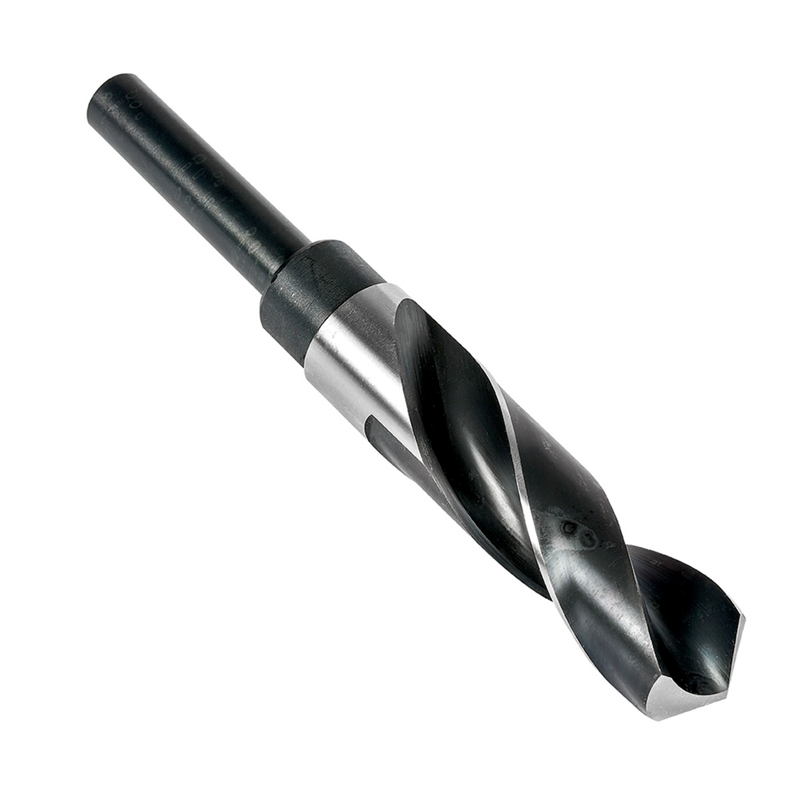

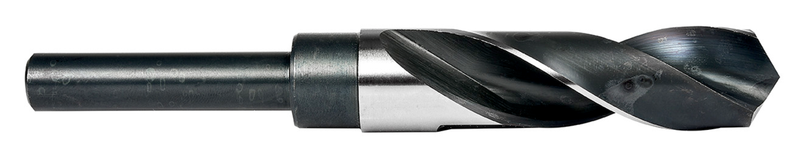

Foret de longueur jobber à queue droite réduite de 1/2", diamètre 1,1406" (1.9/64) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition brillante + trempe vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R561.9/64
GradeLumineux/ST
Product Number5999941
Product FamilyR56
Dimensions
Cutting Diameter — in (DC)1.1406"
Cutting Diameter — mm (DC)28.97 mm
Cutting Diameter — Fractional1,9/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91473
File Type Download
R561.9/64 — 3D Model STP Download
R561.9/64 — Line Drawing PDF Download
