R5619/32
R5619/32
R5619/32

R5619/32

UGC PRE5999956
par Precision Twist Drill
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.27 CAD - $41.27 CAD
$41.27 CAD
$41.27 CAD - $41.27 CAD
$41.27 CAD

Vendu en lots de : 1

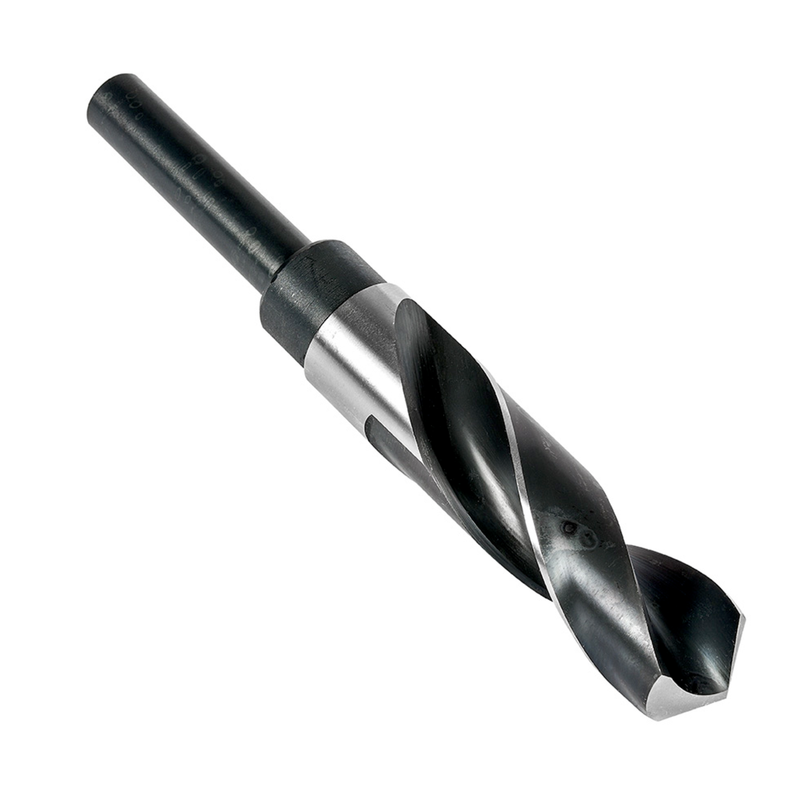

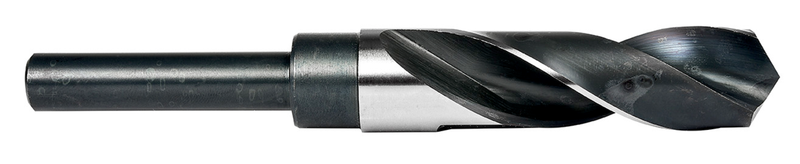

Foret court avec queue droite réduite de 1/2", diamètre 0,5938" (19/32) avec une longueur totale de 6" et une longueur de flûte de 3" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante + revenu à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5619/32
GradeLumineux/ST
Product Number5999956
Product FamilyR56
Dimensions
Cutting Diameter — in (DC)0.5938"
Cutting Diameter — mm (DC)15.08 mm
Cutting Diameter — Fractional19/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91438
File Type Download
R5619/32 — 3D Model STP Download
R5619/32 — Line Drawing PDF Download
