12905/8

12905/8

UGC PRE5999964
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.60 CAD - $80.60 CAD
$80.60 CAD
$80.60 CAD - $80.60 CAD
$80.60 CAD

Vendu en lots de : 1

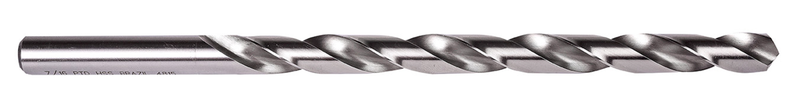

Foret extra-long à queue cylindrique, diamètre 0,6250" (5/8) avec une longueur totale de 12" et une longueur de coupe de 9" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 12xD avec débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12905/8
GradeLumineux
Product Number5999964
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)9.0"
Flute Length — mm (LCF)228.6 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Tool Information
StandardANSI
Reference Numbers
EDP Number59640
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
12905/8 — 3D Model STP Download
12905/8 — Line Drawing PDF Download
