R5637/64
R5637/64
R5637/64

R5637/64

UGC PRE5999989
par Precision Twist Drill
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.11 CAD - $40.11 CAD
$40.11 CAD
$40.11 CAD - $40.11 CAD
$40.11 CAD

Vendu en lots de : 1

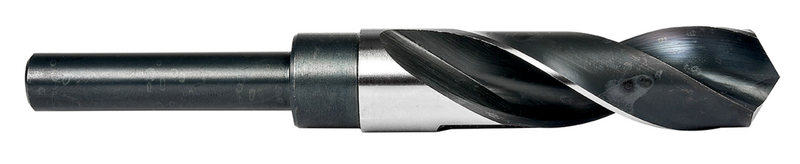

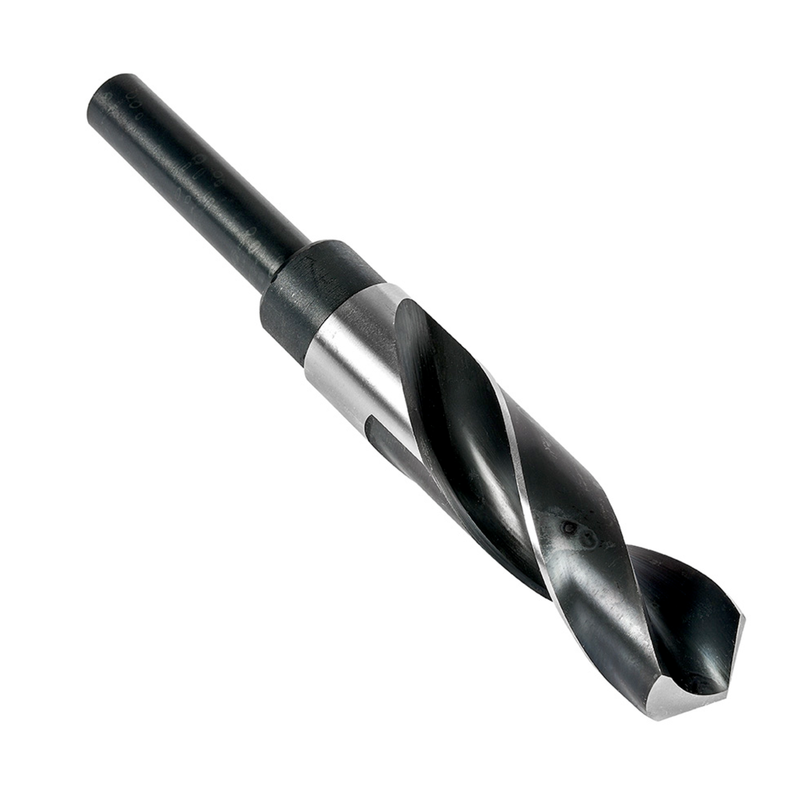

Foret de longueur "Jobber" avec queue cylindrique réduite de 1/2", diamètre de 0,5781" (37/64) avec une longueur totale de 6" et une longueur de coupe de 3" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante + revenu à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5637/64
GradeLumineux/ST
Product Number5999989
Product FamilyR56
Dimensions
Cutting Diameter — in (DC)0.5781"
Cutting Diameter — mm (DC)14.68 mm
Cutting Diameter — Fractional37/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91437
File Type Download
R5637/64 — 3D Model STP Download
R5637/64 — Line Drawing PDF Download
