R89CON51
R89CON51

R89CON51

UGC PRE6000011
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.44 CAD - $3.44 CAD
$3.44 CAD
$3.44 CAD - $3.44 CAD
$3.44 CAD

Vendu en lots de : 12

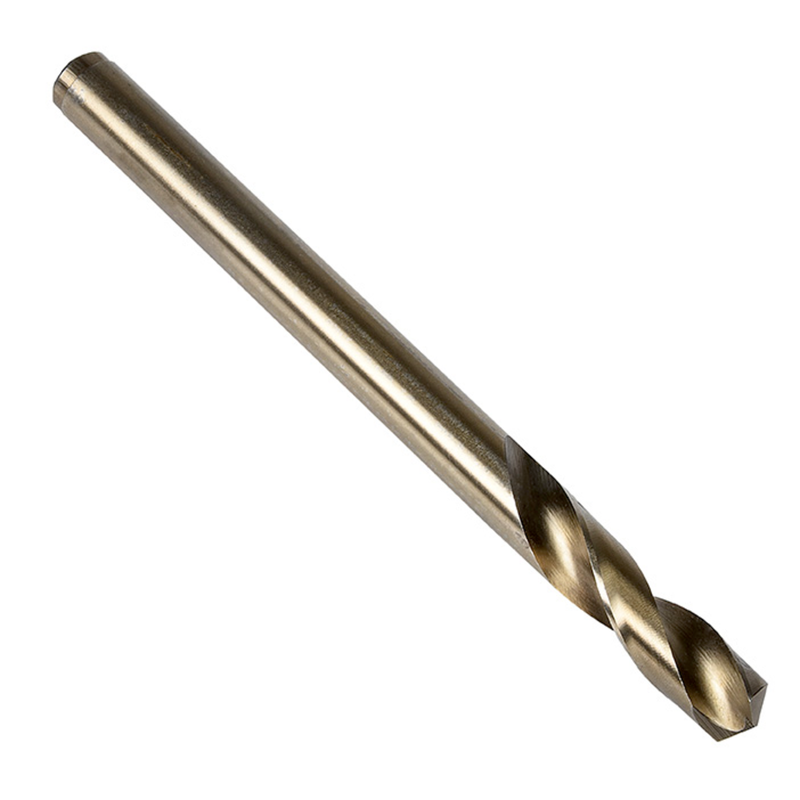

Foret jobber à queue cylindrique, diamètre 0,0670" (N51), d'une longueur totale de 2" et d'une longueur de goujure de 1/2" selon la norme NAS907 Type D, avec une pointe fendue robuste à 135°, en HSS-E à base de cobalt avec finition bronze pour un perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R89CON51
GradeBronze
Product Number6000011
Product FamilyR89CO

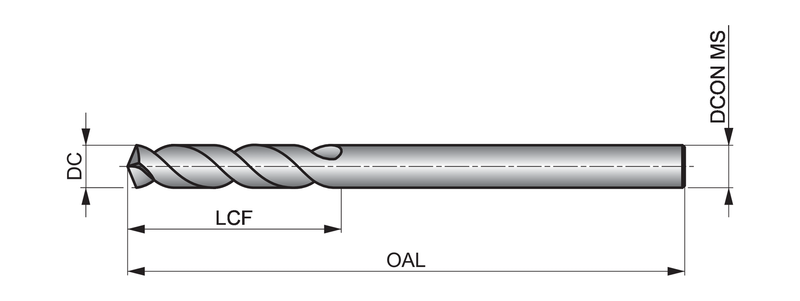

Dimensions
Cutting Diameter — in (DC)0.067"
Cutting Diameter — mm (DC)1.7 mm
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Flute Length — in (LCF)0.5"
Flute Length — mm (LCF)12.7 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.067"
Connection Dia. — mm (DCON)1.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58851
File Type Download
R89CON51 — 3D Model STP Download
R89CON51 — Line Drawing PDF Download
