SPL-1203/8
SPL-1203/8

SPL-1203/8

UGC PRE6000014
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.67 CAD - $79.67 CAD
$79.67 CAD
$79.67 CAD - $79.67 CAD
$79.67 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SPL-1203/8
GradeLumineux
Product Number6000014
Product FamilySPL-120

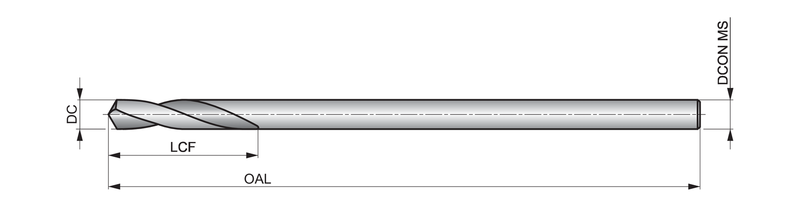

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)7.0"
Overall Length — mm (OAL)177.8 mm
Flute Length — in (LCF)1.125"
Flute Length — mm (LCF)28.58 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number87975
File Type Download
SPL-1203/8 — 3D Model STP Download
SPL-1203/8 — Line Drawing PDF Download
