SPL-903/4
SPL-903/4
SPL-903/4

SPL-903/4

UGC PRE6000028
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$173.96 CAD - $173.96 CAD
$173.96 CAD
$173.96 CAD - $173.96 CAD
$173.96 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SPL-903/4
GradeLumineux
Product Number6000028
Product FamilyTGN-90

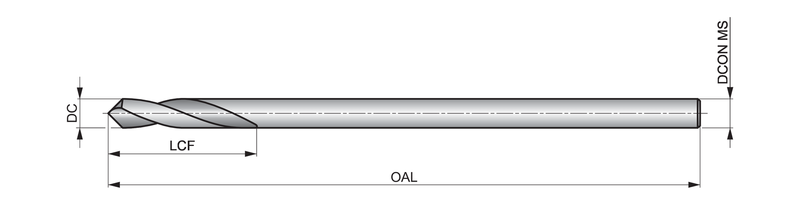

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)10.0"
Overall Length — mm (OAL)254.0 mm
Flute Length — in (LCF)1.875"
Flute Length — mm (LCF)47.63 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number87928
File Type Download
SPL-903/4 — 3D Model STP Download
SPL-903/4 — Line Drawing PDF Download
