R581.1/16
R581.1/16

R581.1/16

UGC PRE6000052
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$107.23 CAD - $107.23 CAD
$107.23 CAD
$107.23 CAD - $107.23 CAD
$107.23 CAD

Vendu en lots de : 1

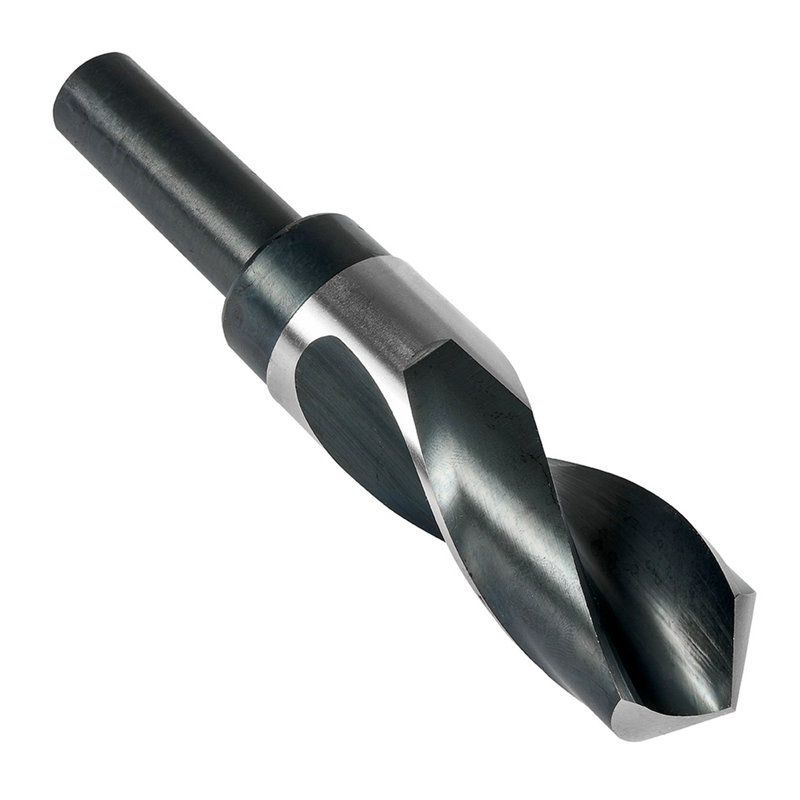

Foret hél. courte à queue cylindrique réduite 3/4", diam. 1,0625" (1.1/16), L. totale 6", L. hél. 3" selon norme ANSI, angle de pointe 118°, HSS avec finition brillante + revenu vapeur, pour perçage 1,5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R581.1/16
GradeBrillant/ST
Product Number6000052
Product FamilyR58

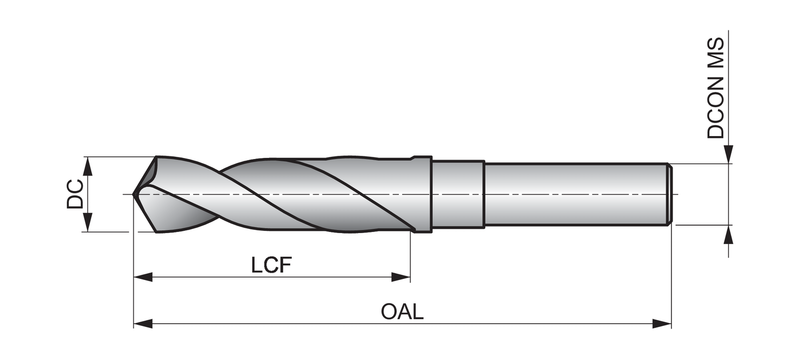

Dimensions
Cutting Diameter — in (DC)1.0625"
Cutting Diameter — mm (DC)26.99 mm
Cutting Diameter — Fractional1.1/16
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91268
File Type Download
R581.1/16 — 3D Model STP Download
R581.1/16 — Line Drawing PDF Download
