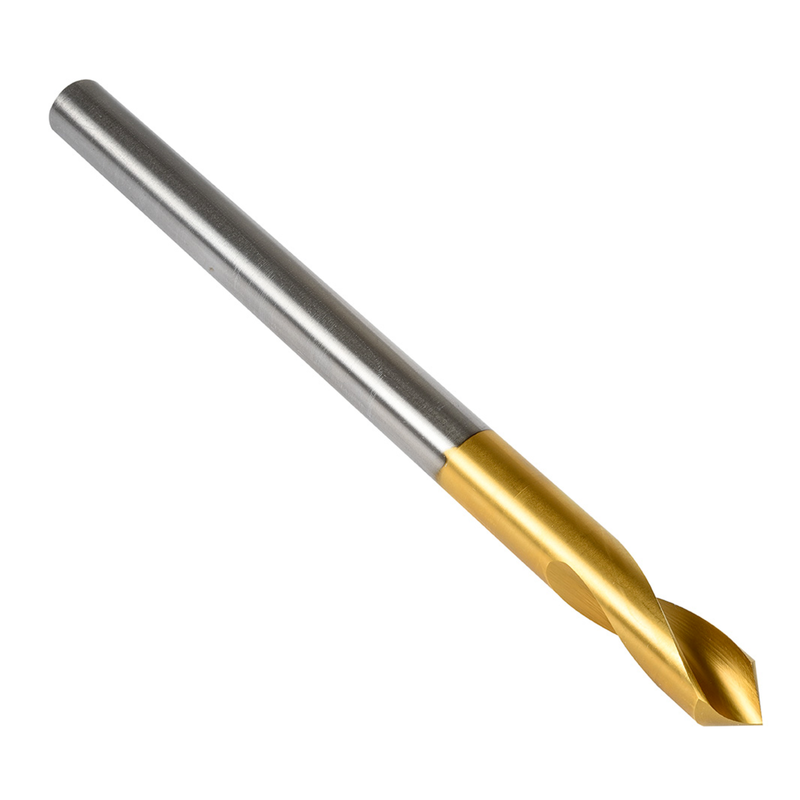

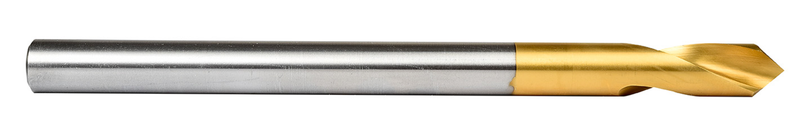

SPLG-901/2
SPLG-901/2
SPLG-901/2

SPLG-901/2

UGC PRE6000059
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.09 CAD - $114.09 CAD
$114.09 CAD
$114.09 CAD - $114.09 CAD
$114.09 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SPLG-901/2
GradeTiN
Product Number6000059
Product FamilySPLG-90

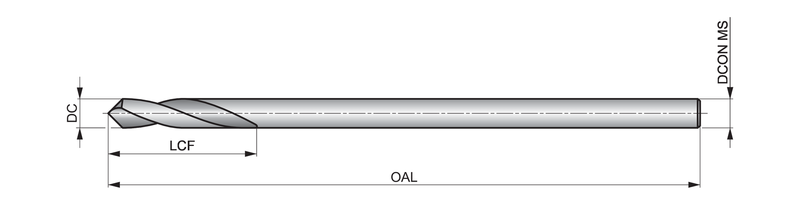

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)1.375"
Flute Length — mm (LCF)34.93 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number87932
File Type Download
SPLG-901/2 — 3D Model STP Download
SPLG-901/2 — Line Drawing PDF Download
