R581.1/8
R581.1/8

R581.1/8

UGC PRE6000064
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$119.19 CAD - $119.19 CAD
$119.19 CAD
$119.19 CAD - $119.19 CAD
$119.19 CAD

Vendu en lots de : 1

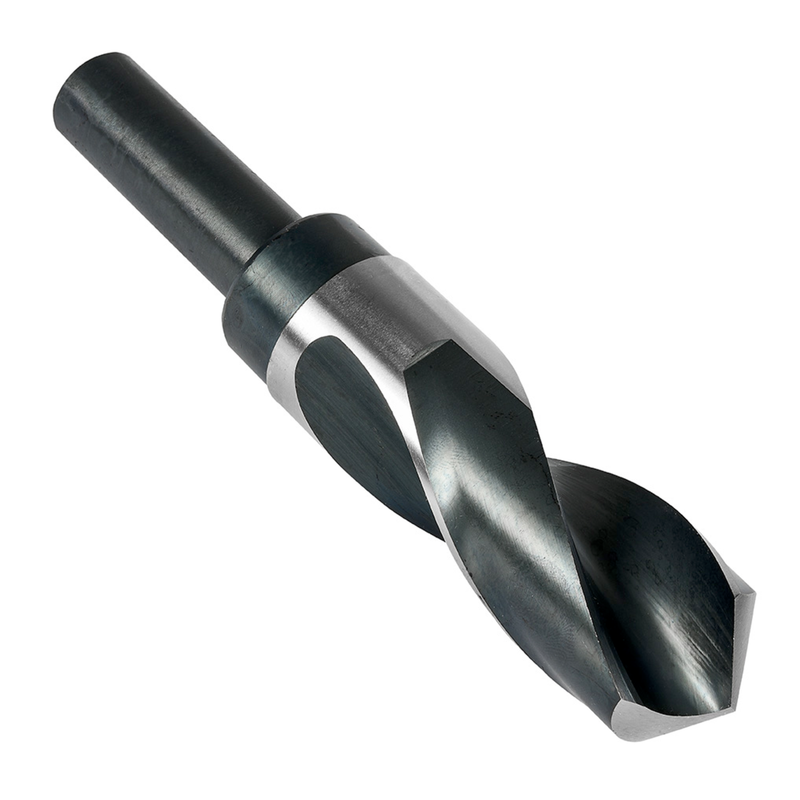

Foret hél. courte à queue cylindrique réduite 3/4", diamètre 1.1250" (1.1/8) avec longueur totale de 6" et longueur de coupe de 3" selon norme ANSI avec angle de pointe 118°, HSS avec finition brillante + revenu vapeur pour perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R581.1/8
GradeClair/ST
Product Number6000064
Product FamilyR58

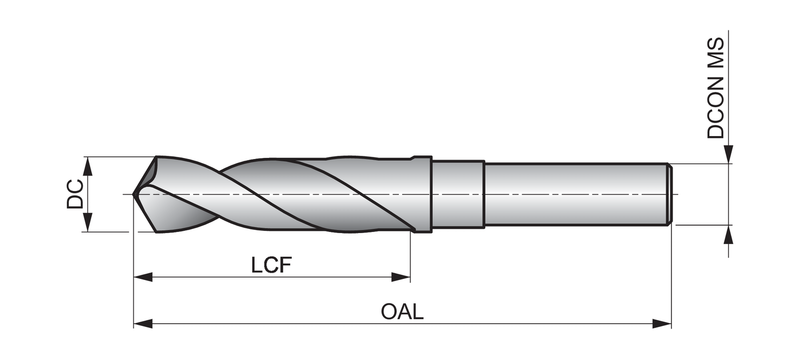

Dimensions
Cutting Diameter — in (DC)1.125"
Cutting Diameter — mm (DC)28.58 mm
Cutting Diameter — Fractional1,1/8
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91272
File Type Download
R581.1/8 — 3D Model STP Download
R581.1/8 — Line Drawing PDF Download
