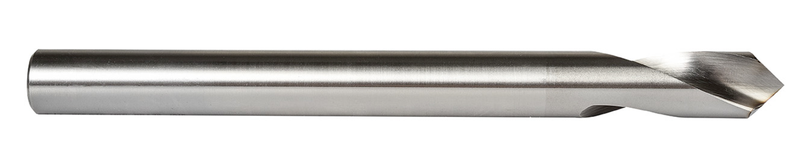

SPR-1201
SPR-1201

SPR-1201

UGC PRE6000076
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$157.46 CAD - $157.46 CAD
$157.46 CAD
$157.46 CAD - $157.46 CAD
$157.46 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SPR-1201
GradeLumineux
Product Number6000076
Product FamilySPR-120

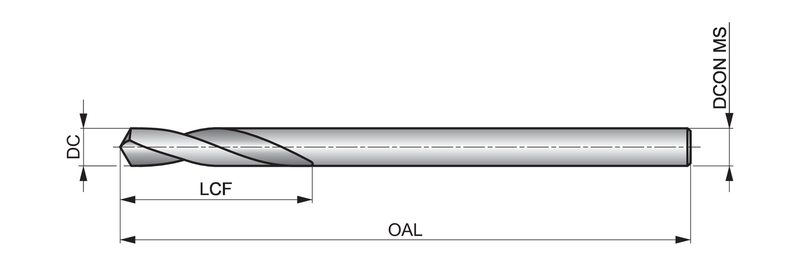

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)2.25"
Flute Length — mm (LCF)57.15 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Drill Point Angle (SIG)120°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number87967
File Type Download
SPR-1201 — 3D Model STP Download
SPR-1201 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
