R581.3/16
R581.3/16

R581.3/16

UGC PRE6000089
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$133.07 CAD - $133.07 CAD
$133.07 CAD
$133.07 CAD - $133.07 CAD
$133.07 CAD

Vendu en lots de : 1

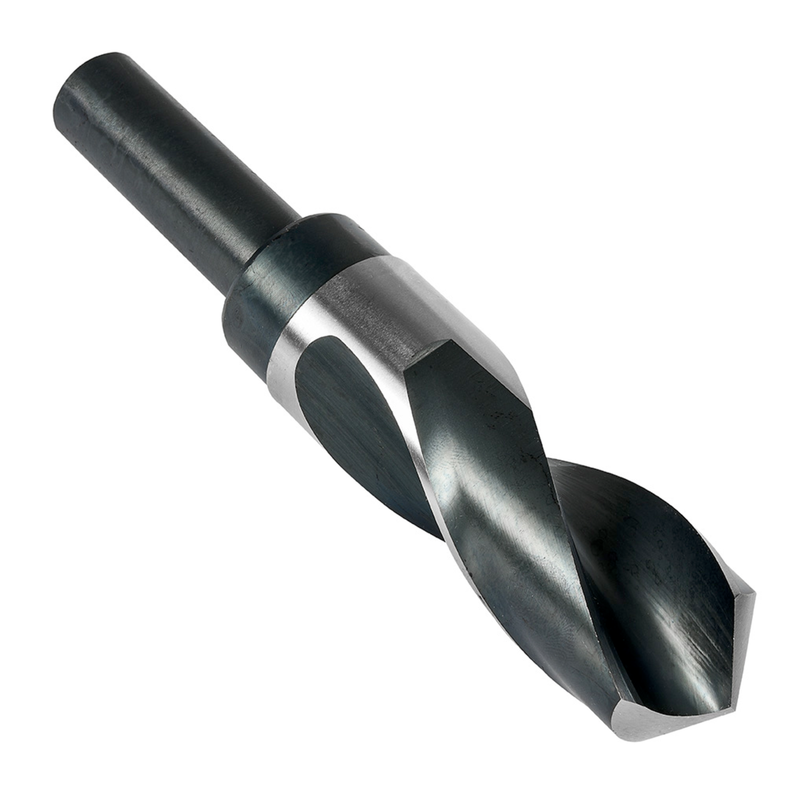

Foret de longueur jobber avec queue cylindrique réduite de 3/4", diamètre de 1,1875" (1.3/16), longueur totale de 6" et longueur de goujure de 3" selon la norme ANSI, angle de pointe de 118°, en HSS avec finition brillante + revenu vapeur pour un perçage de 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)R581.3/16
Product Name (ISO)R581,3/16
GradeLumineux/ST
Product Number6000089
Product FamilyR58
Dimensions
Cutting Diameter — in (DC)1.1875"
Cutting Diameter — mm (DC)30.16 mm
Cutting Diameter — Fractional1,3/16
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91276
File Type Download
R581.3/16 — 3D Model STP Download

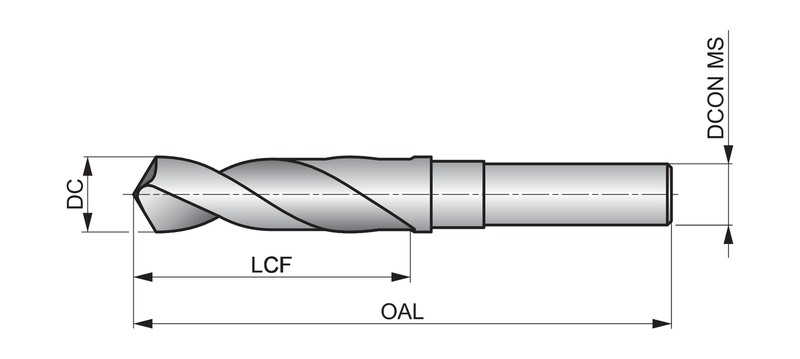

R581.3/16 — Line Drawing PDF Download
