R581.3/32
R581.3/32

R581.3/32

UGC PRE6000092
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.17 CAD - $114.17 CAD
$114.17 CAD
$114.17 CAD - $114.17 CAD
$114.17 CAD

Vendu en lots de : 1

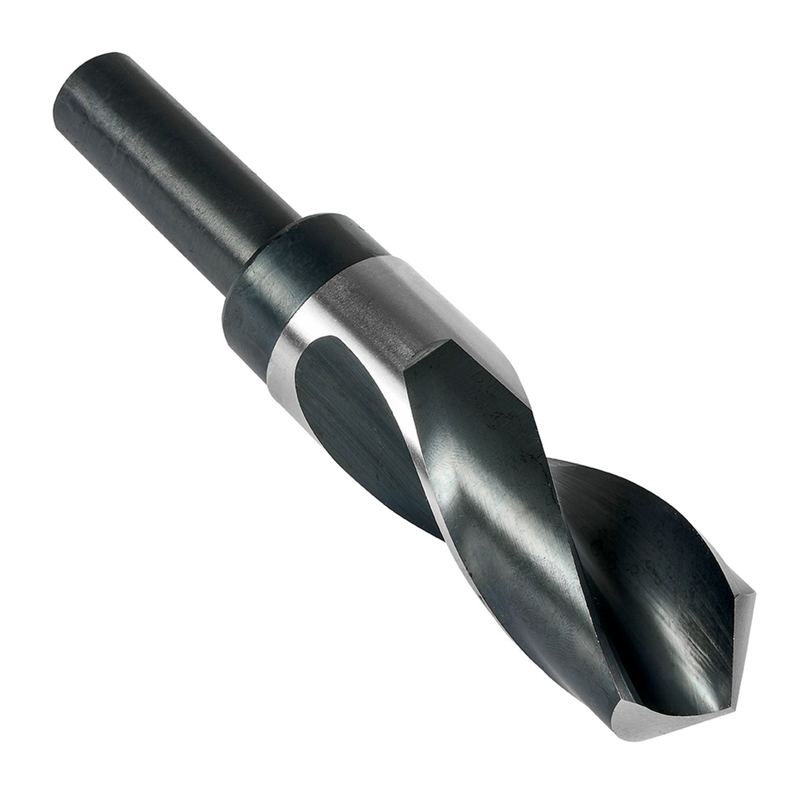

Foret série courte avec queue cylindrique réduite 3/4", diamètre 1,0938" (1.3/32) avec une longueur totale de 6" et une longueur de coupe de 3" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition brillante + revenu vapeur pour perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R581.3/32
GradeLumineux/CT
Product Number6000092
Product FamilyR58

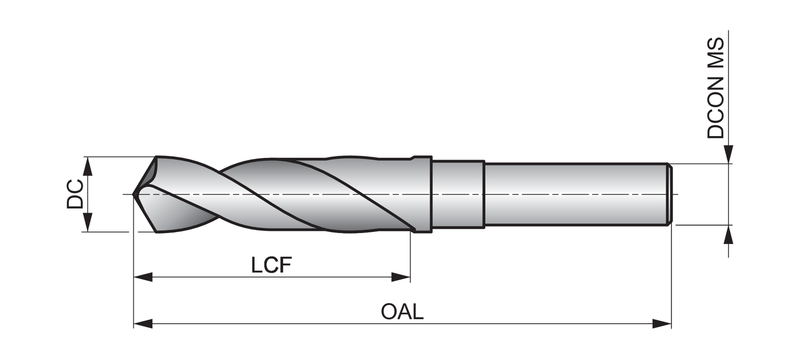

Dimensions
Cutting Diameter — in (DC)1.0938"
Cutting Diameter — mm (DC)27.78 mm
Cutting Diameter — Fractional1,3/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91270
File Type Download
R581.3/32 — 3D Model STP Download
R581.3/32 — Line Drawing PDF Download
