R581.5/16
R581.5/16

R581.5/16

UGC PRE6000107
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$172.80 CAD - $172.80 CAD
$172.80 CAD
$172.80 CAD - $172.80 CAD
$172.80 CAD

Vendu en lots de : 1

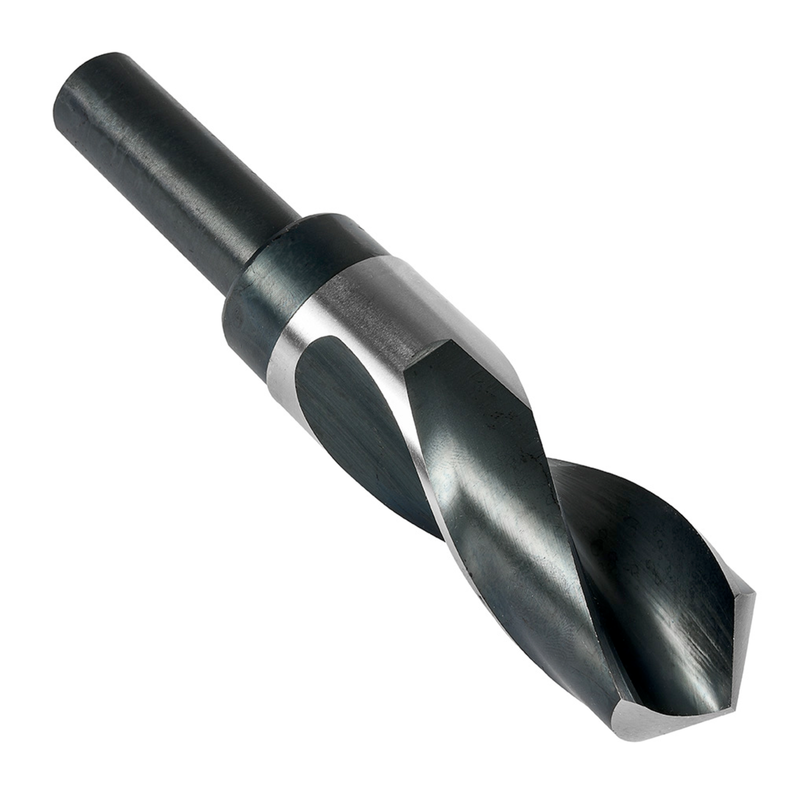

Foret court avec queue cylindrique réduite de 3/4", diamètre 1,3125" (1.5/16) avec une longueur totale de 6" et une longueur de coupe de 3" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante + trempe à la vapeur pour un perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)R581.5/16
Product Name (ISO)R581,5/16
GradeLumineux/CT
Product Number6000107
Product FamilyR58

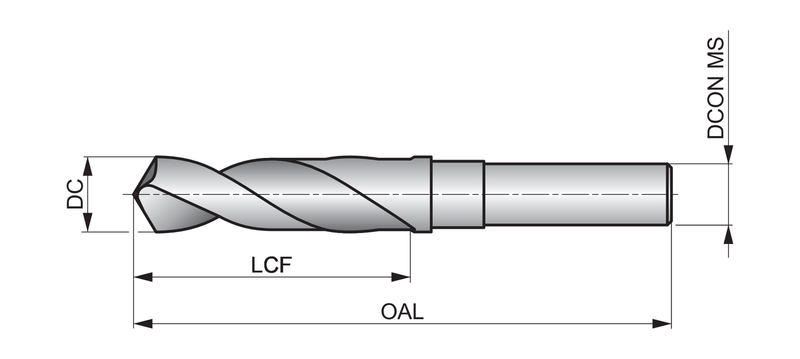

Dimensions
Cutting Diameter — in (DC)1.3125"
Cutting Diameter — mm (DC)33.34 mm
Cutting Diameter — Fractional1,5/16
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91284
File Type Download
R581.5/16 — 3D Model STP Download
R581.5/16 — Line Drawing PDF Download
