R581.5/32
R581.5/32

R581.5/32

UGC PRE6000111
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$121.50 CAD - $121.50 CAD
$121.50 CAD
$121.50 CAD - $121.50 CAD
$121.50 CAD

Vendu en lots de : 1

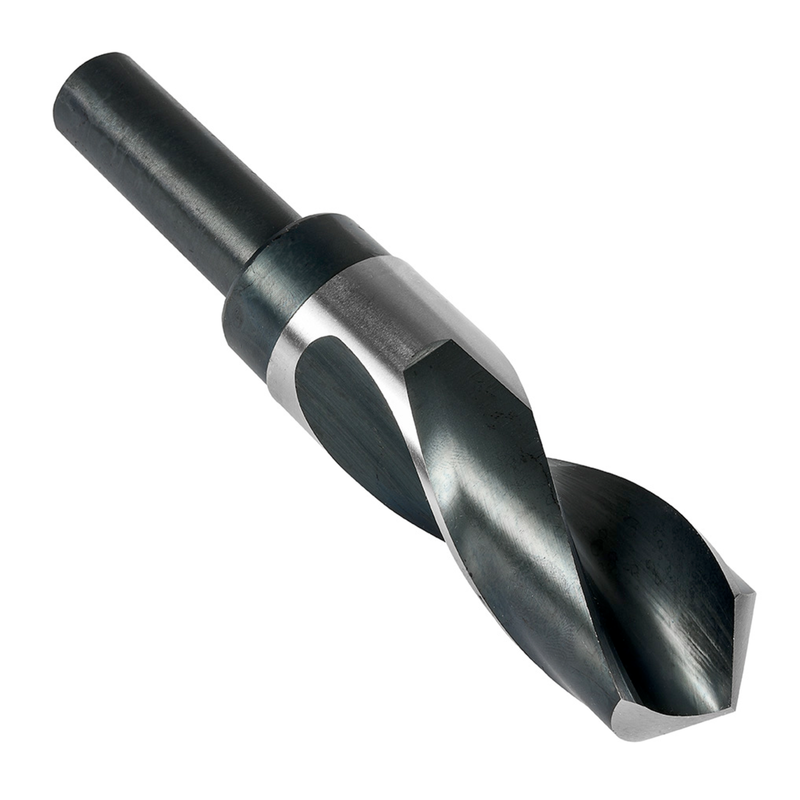

Foret hélicoïdal série courte avec queue cylindrique réduite de 3/4", diamètre 1,1563" (1-5/32), longueur totale de 6" et longueur utile de 3" selon la norme ANSI, angle de pointe de 118°, en acier rapide (HSS) avec finition brillante + revenu vapeur pour un perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R581.5/32
GradeLumineux/ST
Product Number6000111
Product FamilyR58

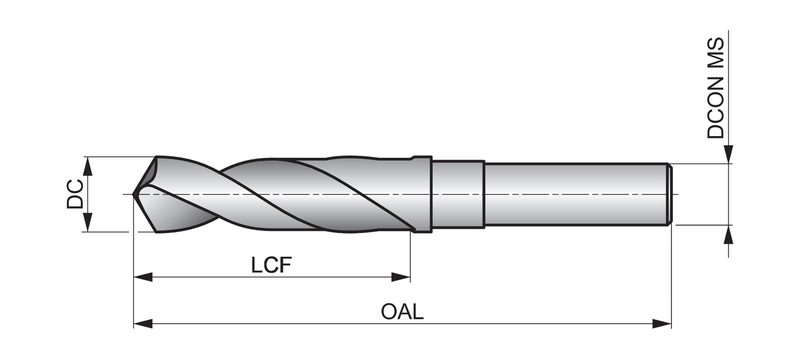

Dimensions
Cutting Diameter — in (DC)1.1563"
Cutting Diameter — mm (DC)29.37 mm
Cutting Diameter — Fractional1,5/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91274
File Type Download
R581.5/32 — 3D Model STP Download
R581.5/32 — Line Drawing PDF Download
