SPSG-1203/4
SPSG-1203/4
SPSG-1203/4

SPSG-1203/4

UGC PRE6000116
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$107.01 CAD - $107.01 CAD
$107.01 CAD
$107.01 CAD - $107.01 CAD
$107.01 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SPSG-1203/4
GradeTiN
Product Number6000116
Product FamilySPSG-120

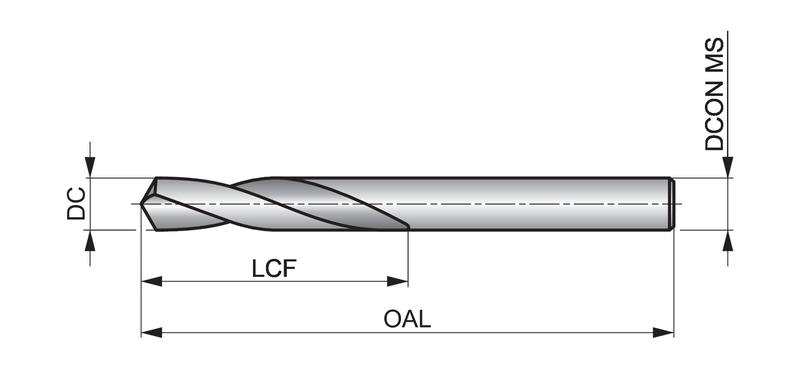

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Flute Length — in (LCF)1.875"
Flute Length — mm (LCF)47.63 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number87960
File Type Download
SPSG-1203/4 — 3D Model STP Download
SPSG-1203/4 — Line Drawing PDF Download
