UGC PRE6000132
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.59 CAD - $9.59 CAD
$9.59 CAD
$9.59 CAD - $9.59 CAD
$9.59 CAD

Vendu en lots de : 12

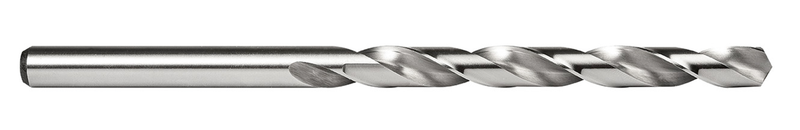

Foret série longue, à queue cylindrique, diamètre 0,1040" (N37), longueur totale de 4,5/8" et longueur de goujure de 2,1/2" selon la norme ANSI, avec angle de pointe de 118°, en HSS avec finition brillante pour un perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R52N37
GradeLumineux
Product Number6000132
Product FamilyR52
Dimensions
Cutting Diameter — in (DC)0.104"
Cutting Diameter — mm (DC)2.64 mm
Overall Length — in (OAL)4.625"
Overall Length — mm (OAL)117.48 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.104"
Connection Dia. — mm (DCON)2.64 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number52037
File Type Download
R52N37 — 3D Model STP Download
R52N37 — Line Drawing PDF Download
